1、SUDONG-DR15x说明书：/Download/1051.html
2、SUDONG-DR15x规格书：/Download/1052.html
3、SUDONG-DR15x设置软件：/Download/1050.html
4、串口调试助手：/Download/27.html
二、准备工作
1、SUDONG-DR154产品 数量1个
2、电源适配器 12V 数量1个
3、手机数量1部
4、电脑数量1台
三、连接框图
485转usb（Modbus Slave）-----DR154------MQTT 服务器--------MQTT客户端
说明：本案例中，串口设备用电脑端的Modbus Slave软件模拟串口从机来测试
四、手机微信扫码配置参数

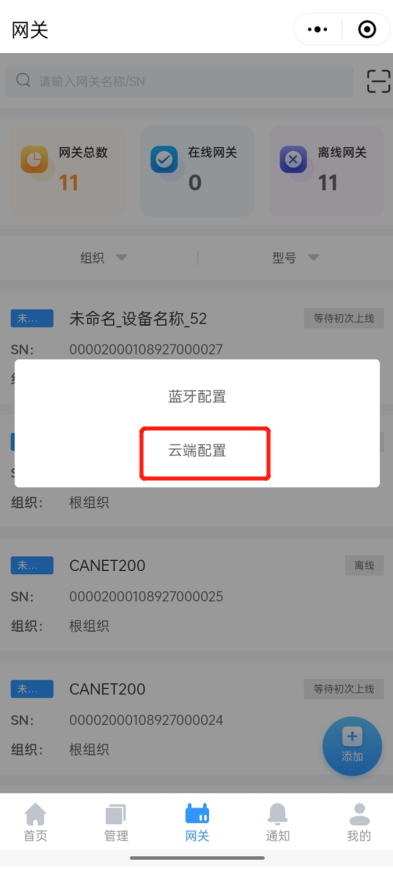

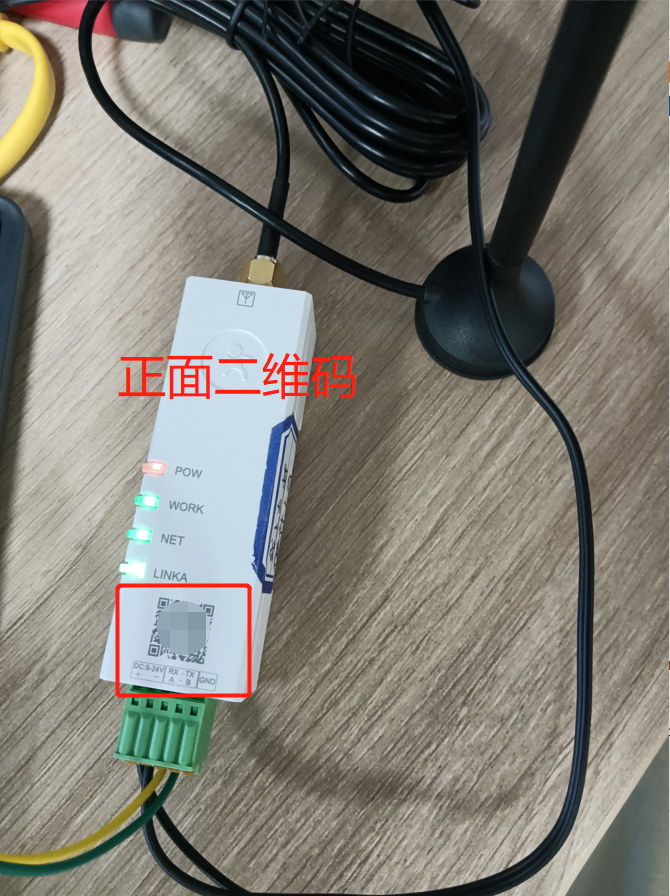

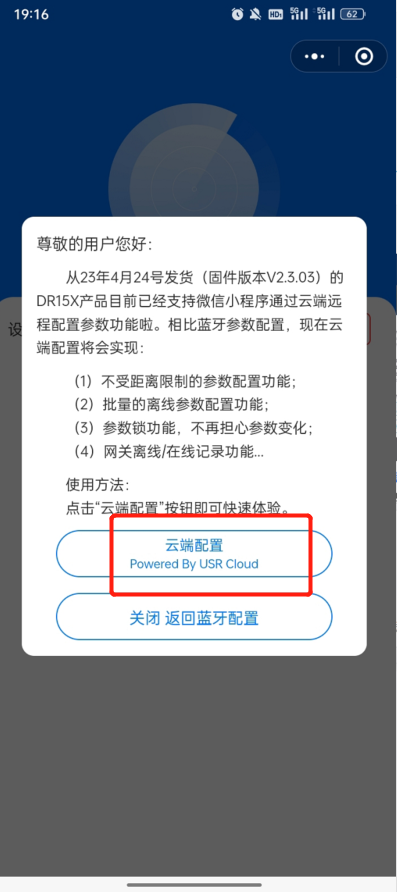

1.打开微信扫一扫DR154正面二维码，并点击“云端配置”。（打开手机蓝牙功能）

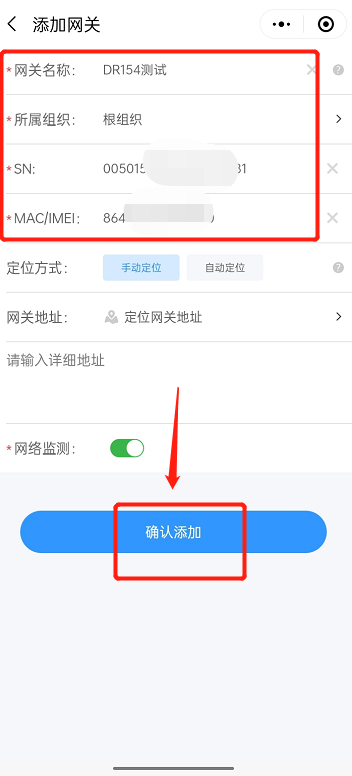

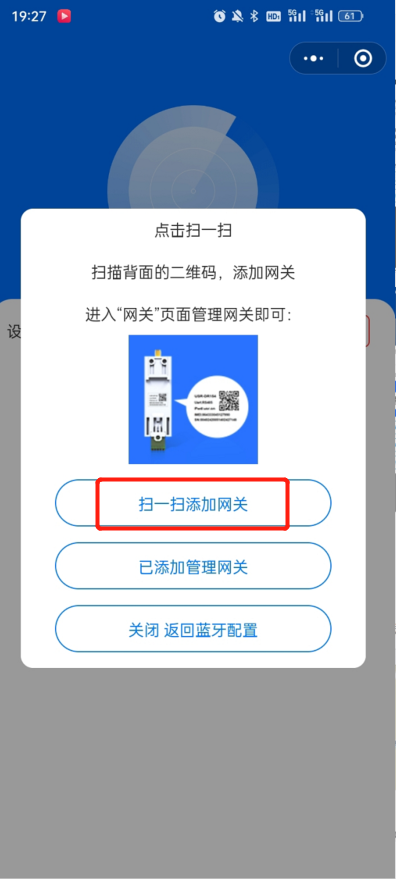

2.点击“扫一扫添加网关”，扫一扫DR154背面二维码。
3.然后点击“云端配置”并添加网关。

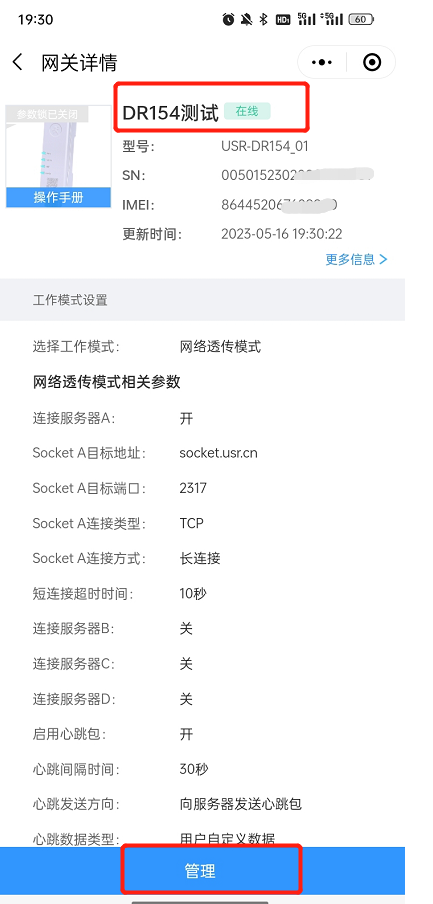

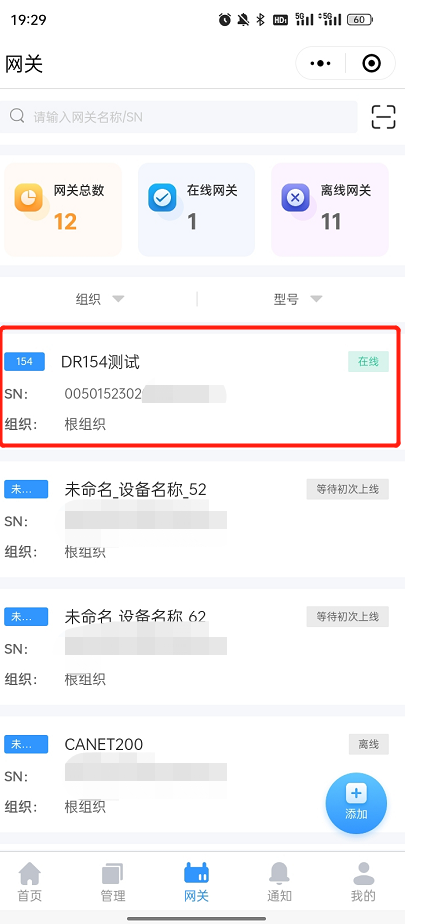

4.稍等一会儿，DR154就会显示在线状态。

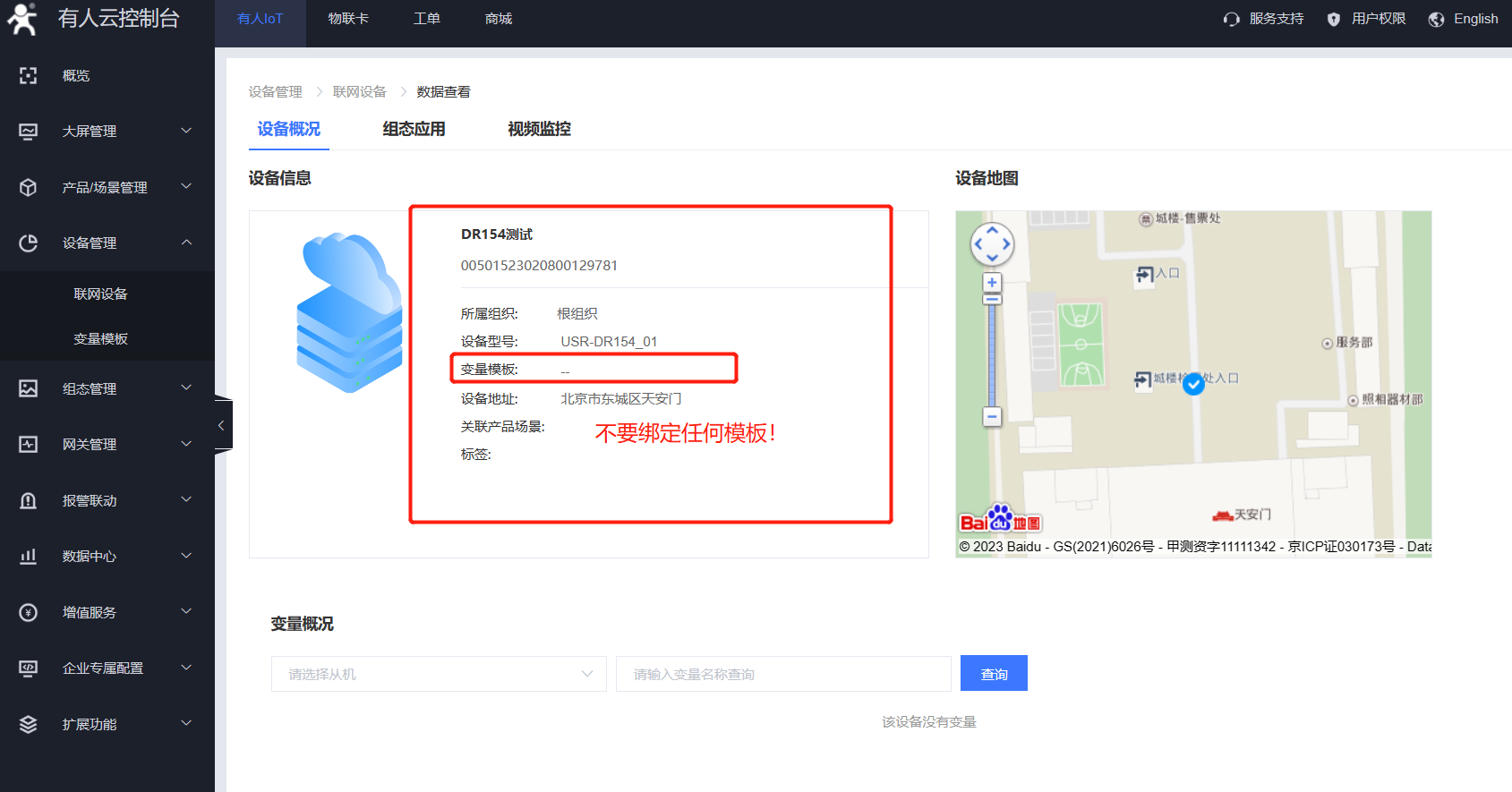

此时注意：DR154不要在云端绑定任何模板，不然DTU会自动切换到速动云模式。

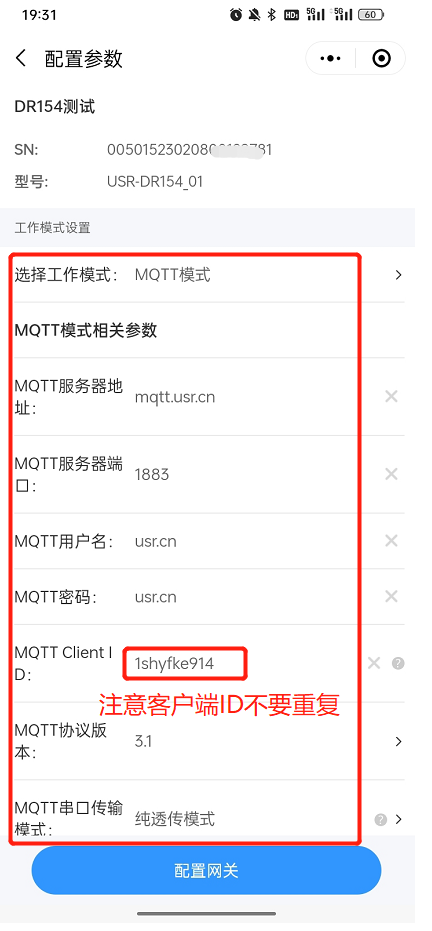

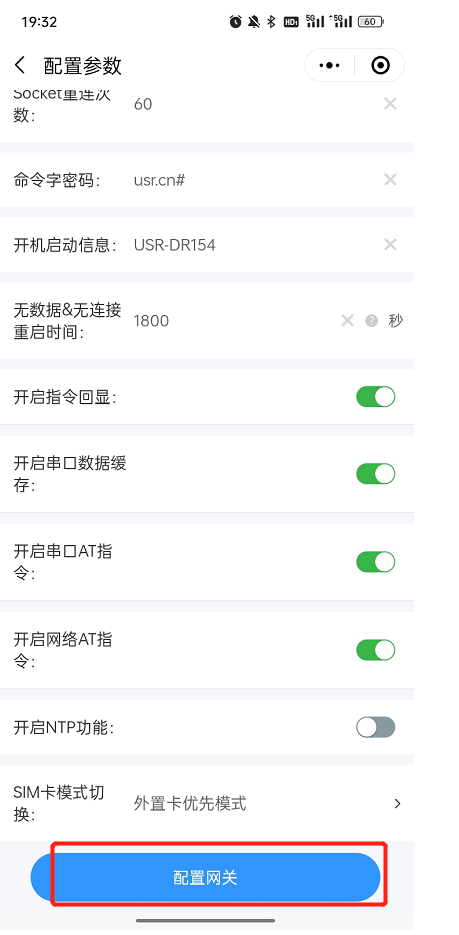

5.点击下方的“管理”，可以设置DTU的MQTT参数，设置完所有参数后，需要点击“配置网关”。
我司MQTT默认服务器：mqtt.shop.louxingsudong.top 端口：1883
MQTT默认账号：shop.louxingsudong.top
MQTT默认密码：shop.louxingsudong.top 可供客户测试使用。

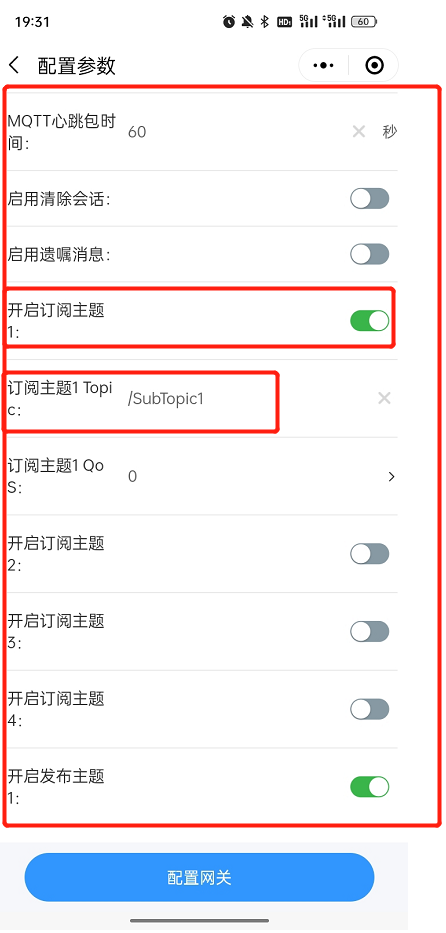

五、打开MQTT客户端软件，连接MQTT服务器，并设置好订阅主题和发布主题。
六、数据测试

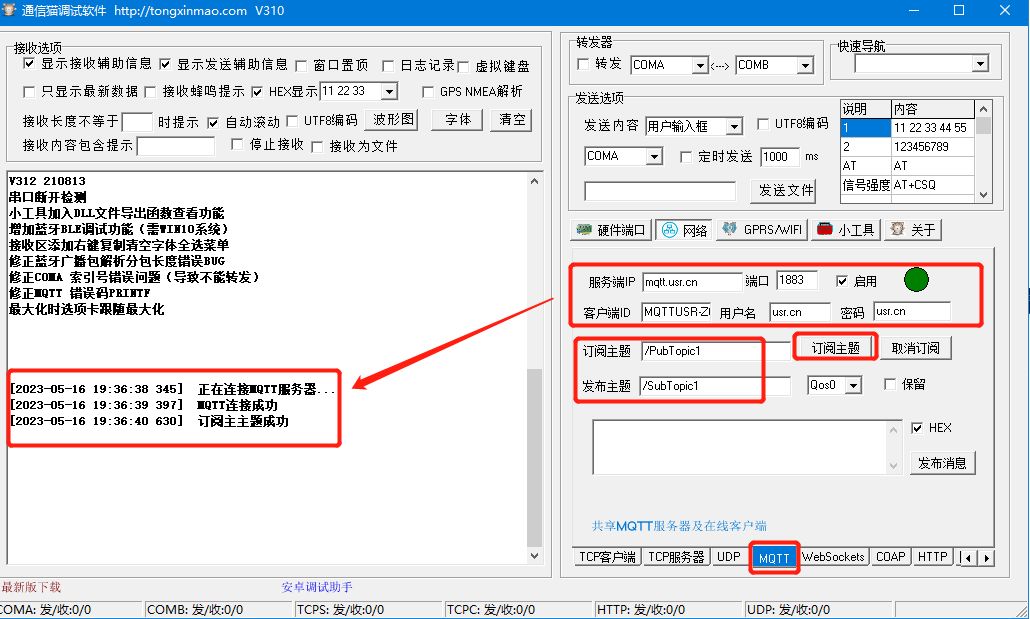

打开串口助手，选择好串口参数，串口助手和MQTT客户端成功互发数据。
七、常见问题解决办法
附件1
SUDONG-DR15X设备上电信号指示灯不亮怎么办？
答：
一定要连接4G天线！！！
使用外置卡设备
1、查看卡托插卡方向
2、确认使用的是普通手机卡还是物联卡？手机卡是否存在停机无流量状态，物联卡有没有在其他联网设备内使用过，是否有机卡绑定机制，可以将手机卡放置手机测试上网状态正常后放置设备内。物联卡如果机卡绑卡可以联系出卡商做处理。
使用设备内置卡
1、设备上电内置卡会自动激活，如果没激活可以联系我司技术提供卡号做手动激活
2、可以在使用收货手机卡注册登入物联卡平台查看内置卡流量使用情况，流量不足可以购买加油包或者变更套餐
3、可以进入配置状态发送AT+SIMSWITCH=0,1锁定内置卡
4、是否使用我司出货配带电源是匹配，检查供电电压是否正常
以上步骤排查完设备信号指示灯仍然不亮联系我司技术返修处理。
附件2
MQTT服务器收不到SUDONG-DR15X的串口数据

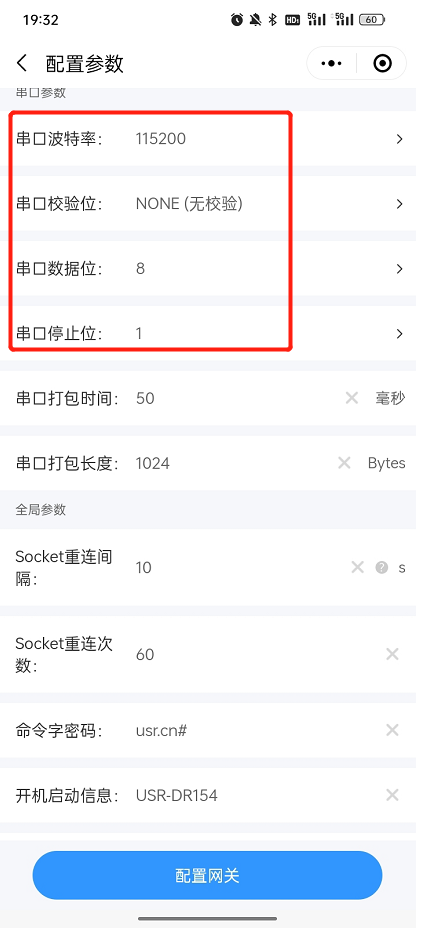

1、检查DR154的串口参数跟485终端设备参数是否保持一致
2、需要检查MQTT服务器是否正常可以被连接，也可以使用我司MQTT服务器进行测试
3、观察MQTT客户端软件是否成功连接上MQTT服务器
4、MQTT客户端软件的订阅主题对应了DR15X的发布主题，MQTT客户端软件的发布主题对应了DR15X的订阅主题
撰写人：史玮
