一、资料下载
1.SUDONG-M100说明书：/Download/1202.html
2.设置软件：/Download/1213.html
3.DR15X说明书：/Download/1051.html
4.DR15X规格书：/Download/1052.html
5.DR15X调试软件：/Download/1050.html
6.串口调试助手：/Download/27.html
⼆、准备⼯作
1、SUDONG-DR154产品、SUDONG-M100 数量分别1个
2、电源适配器 12V 数量2个
3、485转USB调试线 数量1根
4、电脑 数量1台
5、网线一条
三、连接框图
终端串⼝设备——DR154——有⼈云平台——M100
说明：本案例中，串⼝设备⽤电脑端的串⼝调试助⼿软件模拟来测试
四、设备配置上云
⽬前设备有两种设置⽅式 1.云端配置（推荐使⽤） 2.产品设置软件配置 云端配置⽅式： 1.微信注册登录 如果未曾注册过有⼈通⾏证，可以直接勾选“我已阅读并同意《⽤ 户协议》”并点击“微信⼿机号快捷登录”，弹窗同意⼩程序获取 ⼿机号权限之后， 若当前⼿机号未注册有⼈通⾏证，则将为您直接注册有⼈云账号。注册登录成功之 后即可配置⽹关添加,

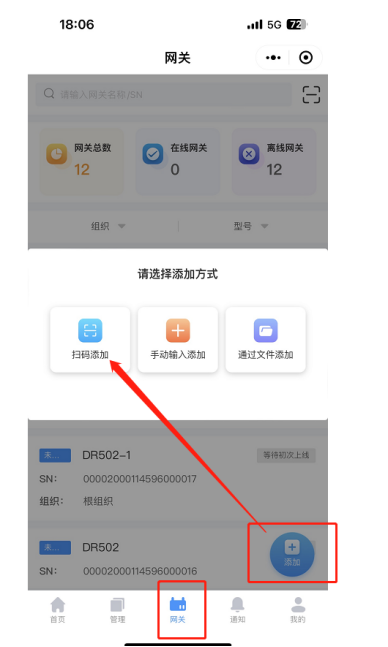

2、进入到扫码添加界面，扫描设备正面标签二维码---会自动显示设备的SN以及MAC信息，网关名称可以自定义，选择设备组织，选则定位方式：手动定位和自动定位根据需求选择，点击确定添加。（注意：速动云透传要开启），然后给设备断电重新上电，可以看到设备在线

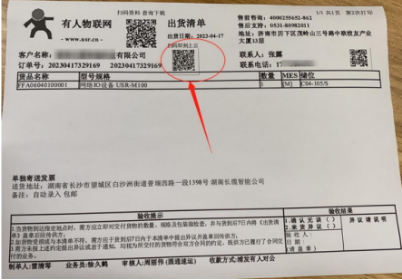

注：若批量购买网关设备，可以扫描纸质出货单上方的“扫码即可上云”二维码批量添加网关设备
若网关暂时不需要上电或者联网使用，添加好设备无需等待。首次在账号中添加的设备会显示状态为“等待初次上线”，当上电联网 使用时，网关会自动上线并更新状态为“在线”。
五、配置M100添加上云

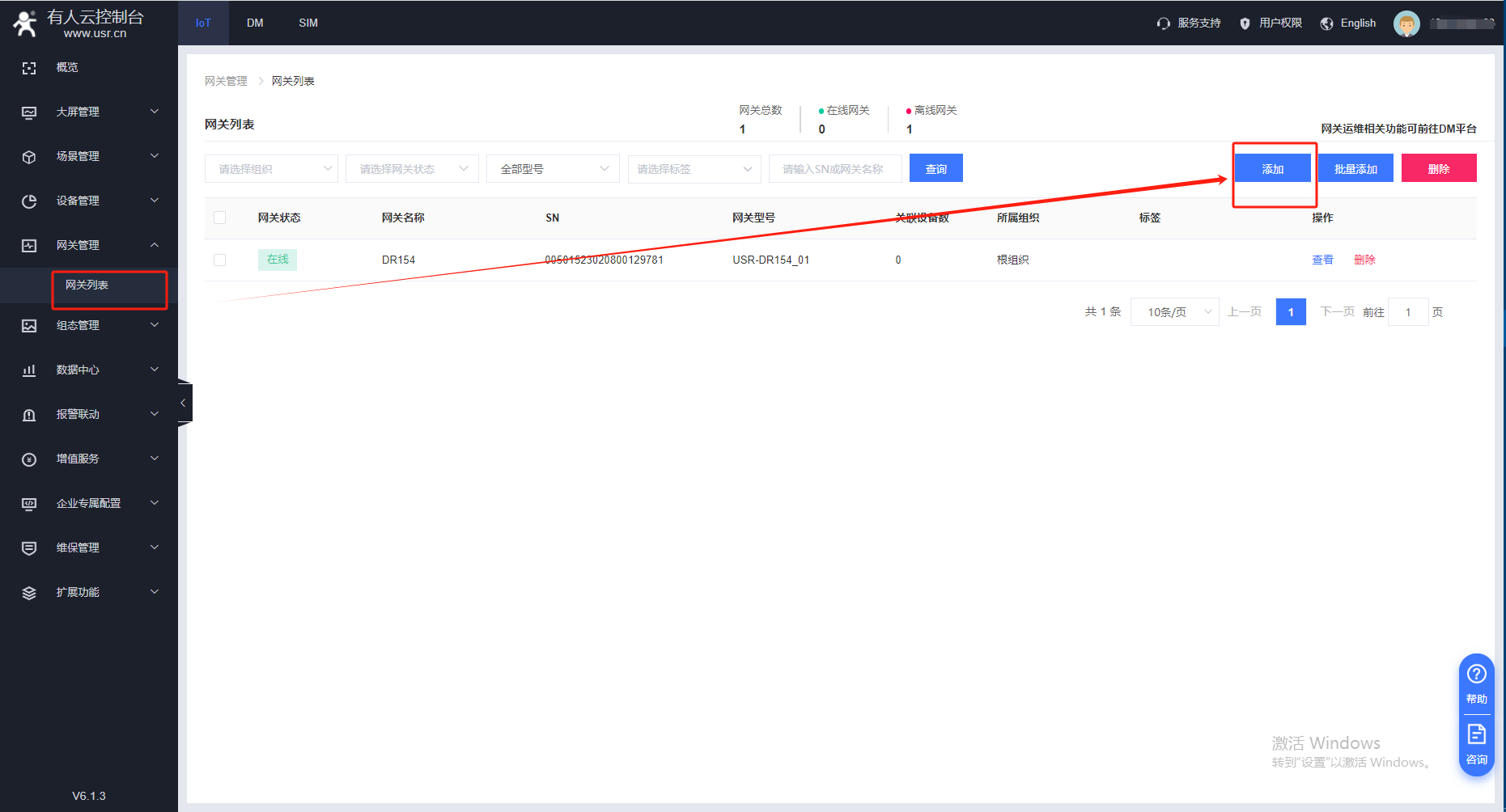

1、在网关管理——添加
2、网关名称自己配置，组织选择和154同一个组织，点击sn不支持点这里，让云端自动生成，开启速动云透传，保存
可以看到云端生成的sn和密码，以及接入地址，可以配置到M100内部
M100配置
（1）M100网口通过网线直连电脑网口或者和电脑接到同一个路由器上（测试接到同一个路由器测试），给M100用12V电源适配器供电。

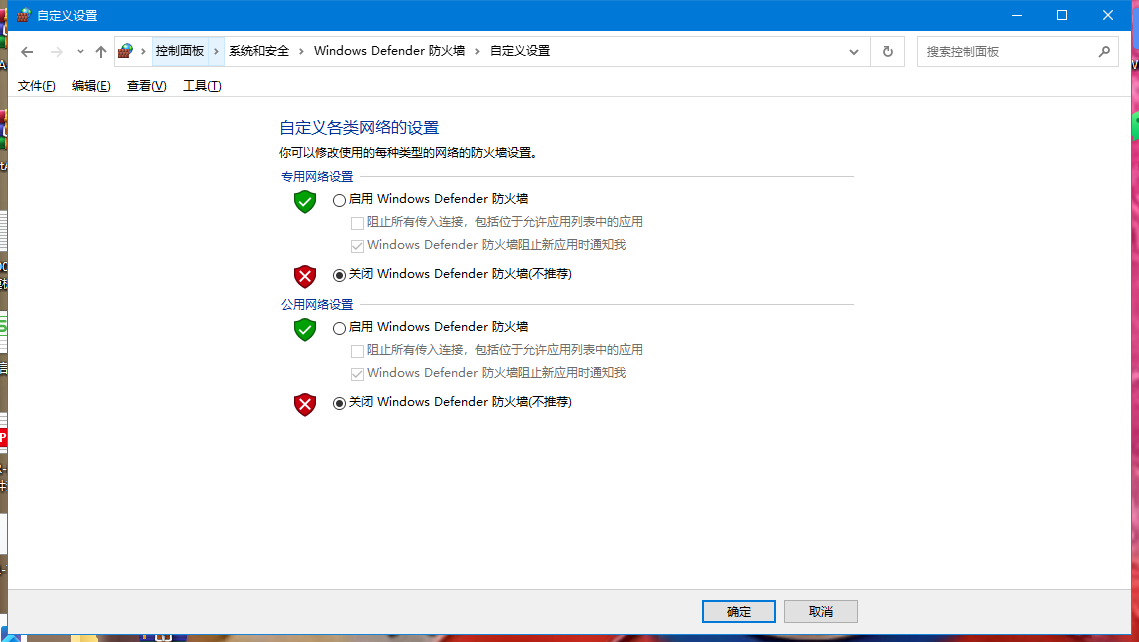

（2）电脑关闭防火墙和杀毒软件：控制面板--系统和安全--Windows Defender 防火墙--关闭防火墙

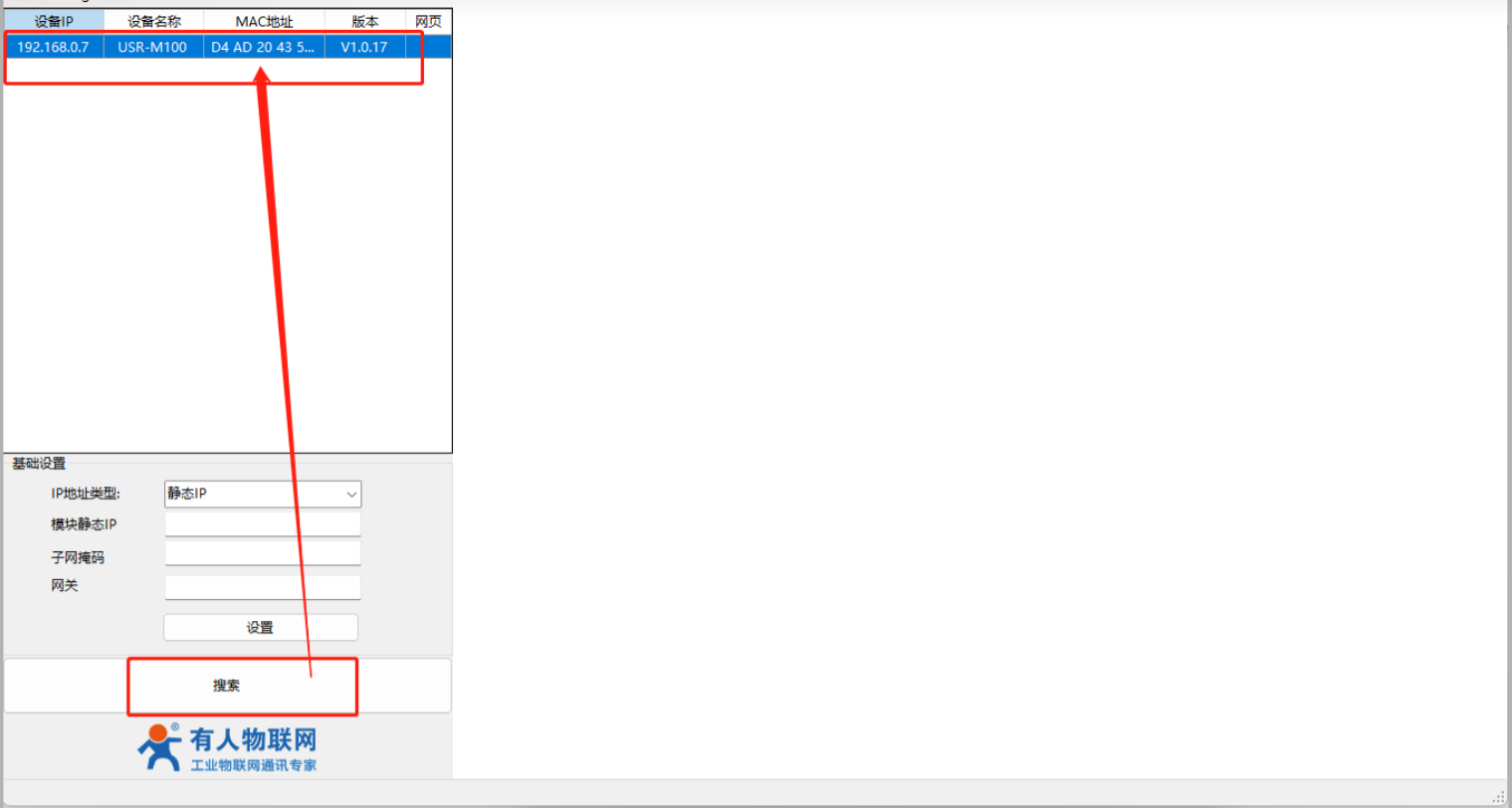

(3)下载并打开系列设置软件：用配置软件搜索M100设备，单击搜索

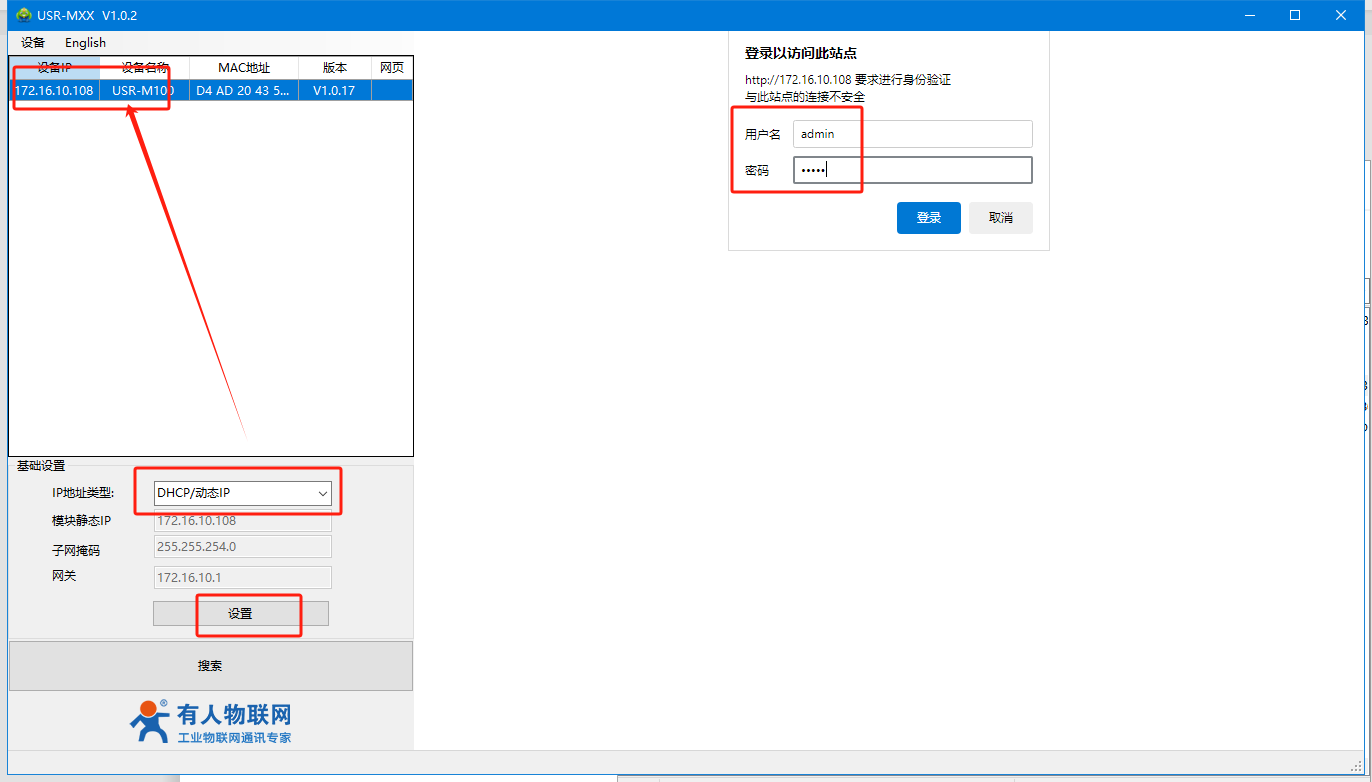

选中搜到的设备，改成动态获取ip，点设置，然后再重新搜索，搜搜到设备后双击设备。用户名和密码都是admin

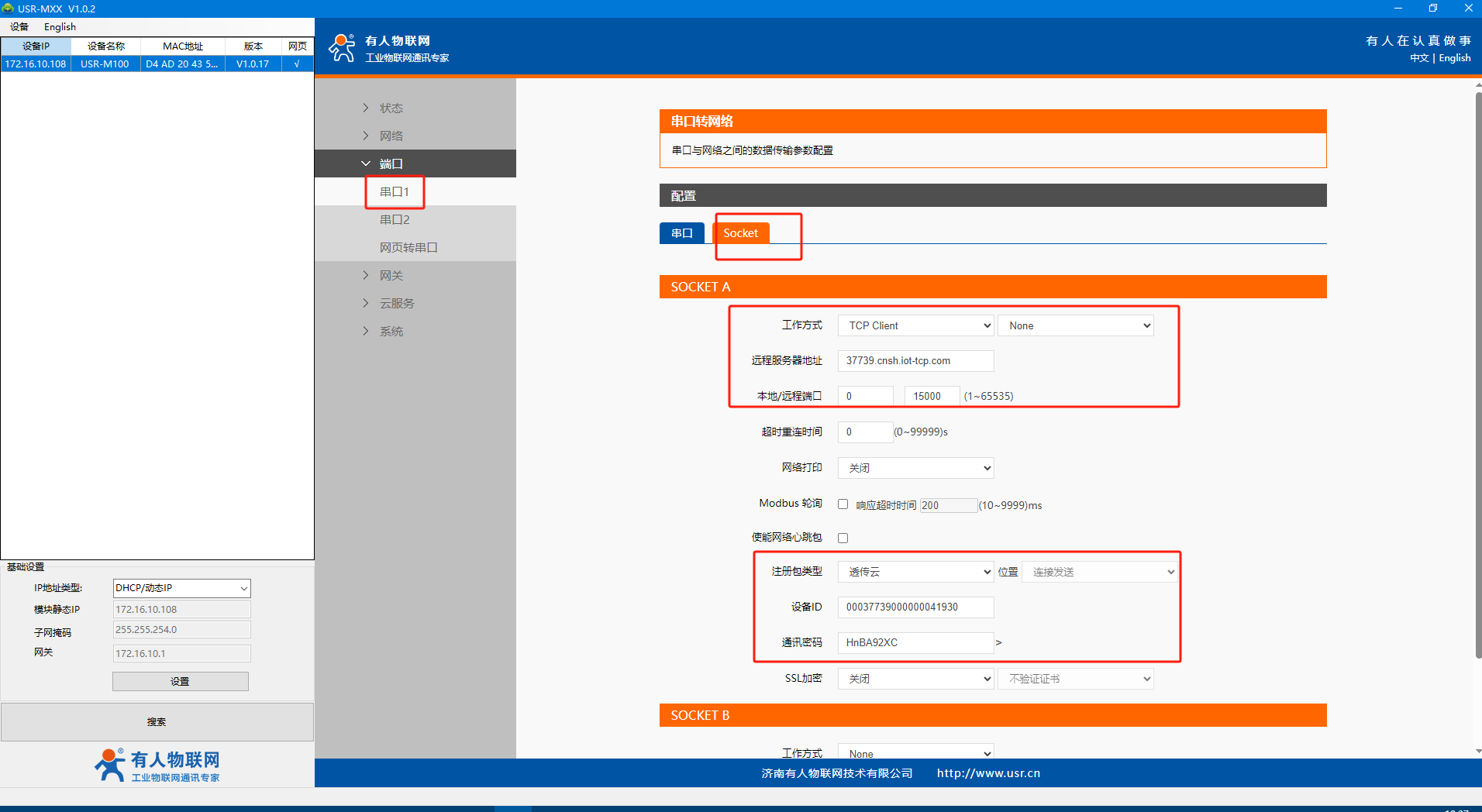

（4）配置串口1的socketA作为tcp client，连接云端生成的接入地址和端口
注册包开启，类型选择：透传云
设备id和密码是云端生成的sn和密码
点击保存应用，重启生效

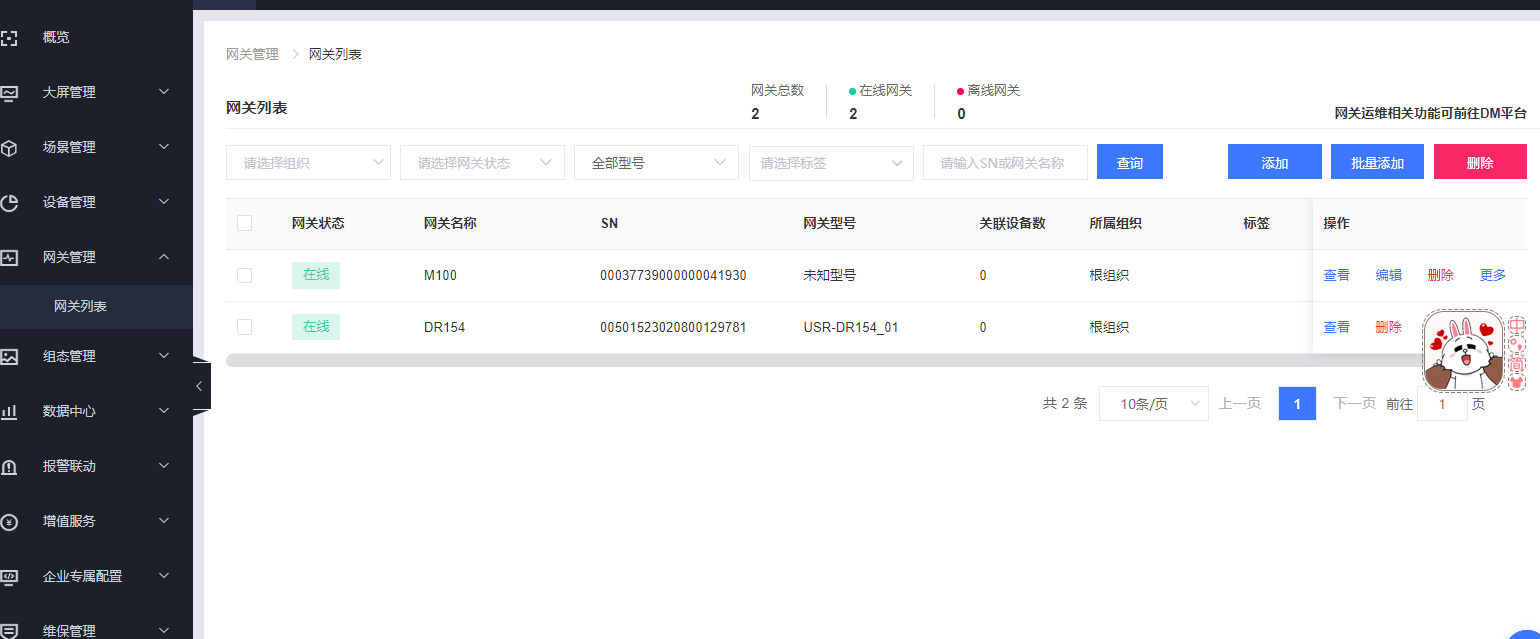

（5）可以看到设备远端在线
六、云端配置透传组

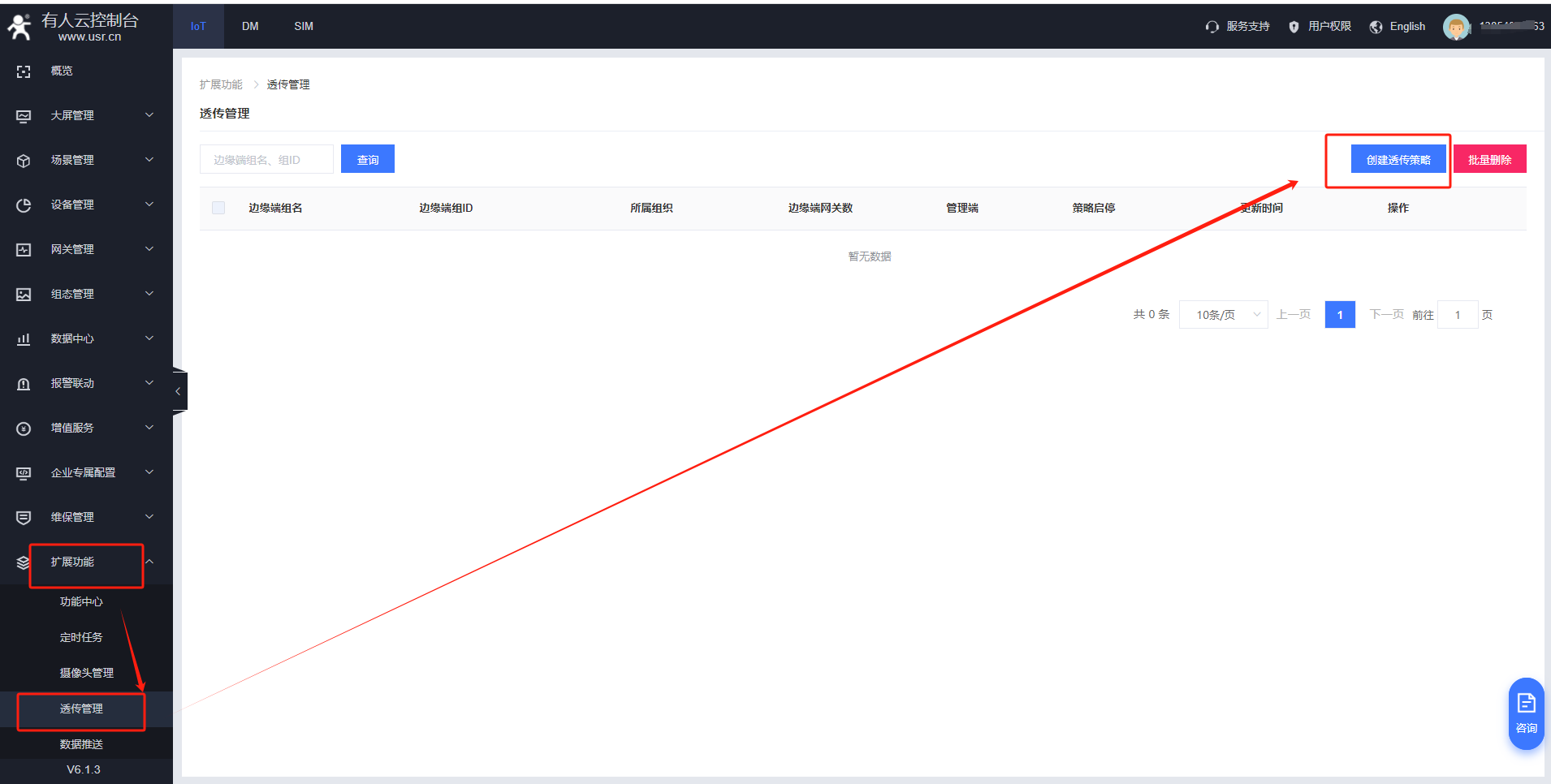

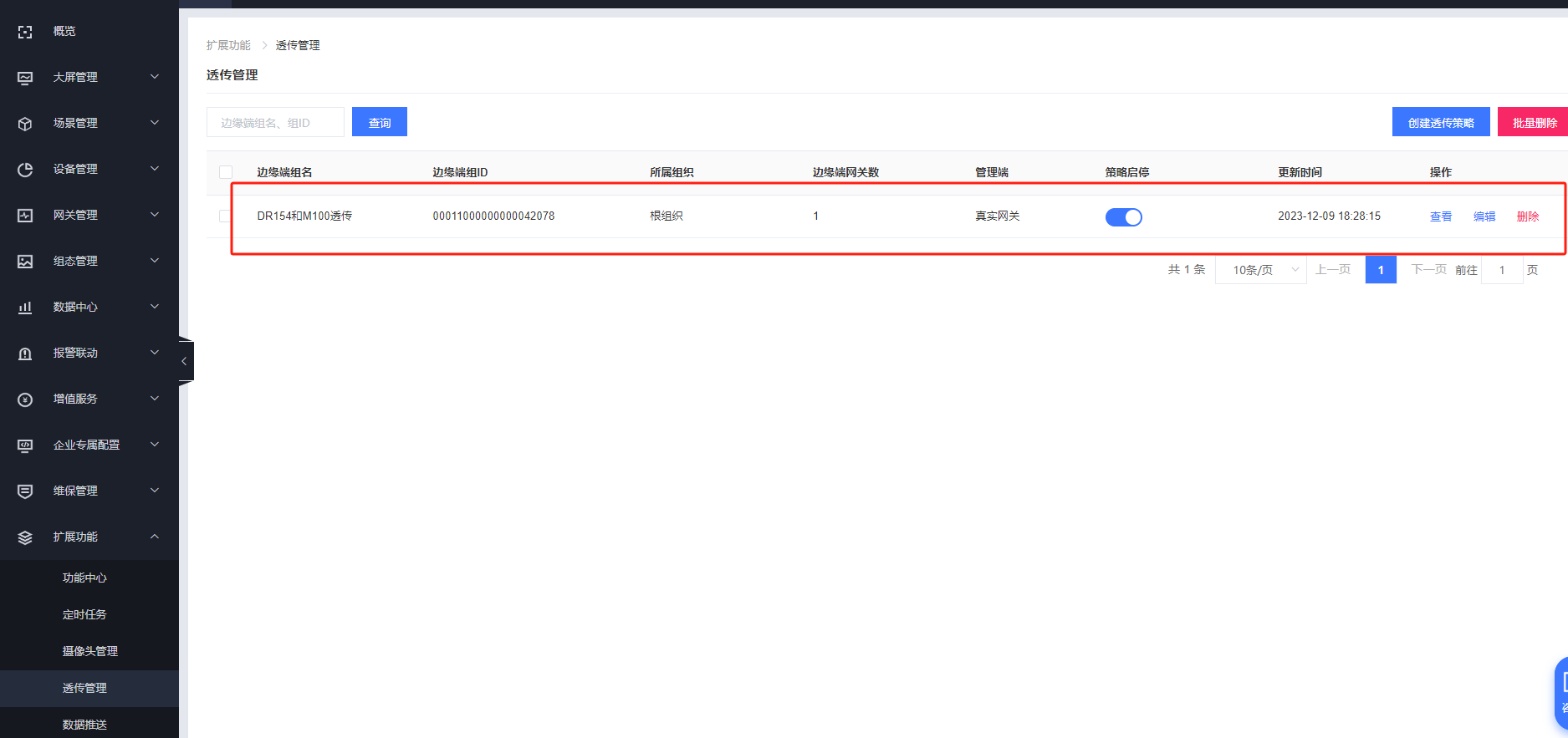

1、创建透传策略扩展功能——透传管理——创建透传策略

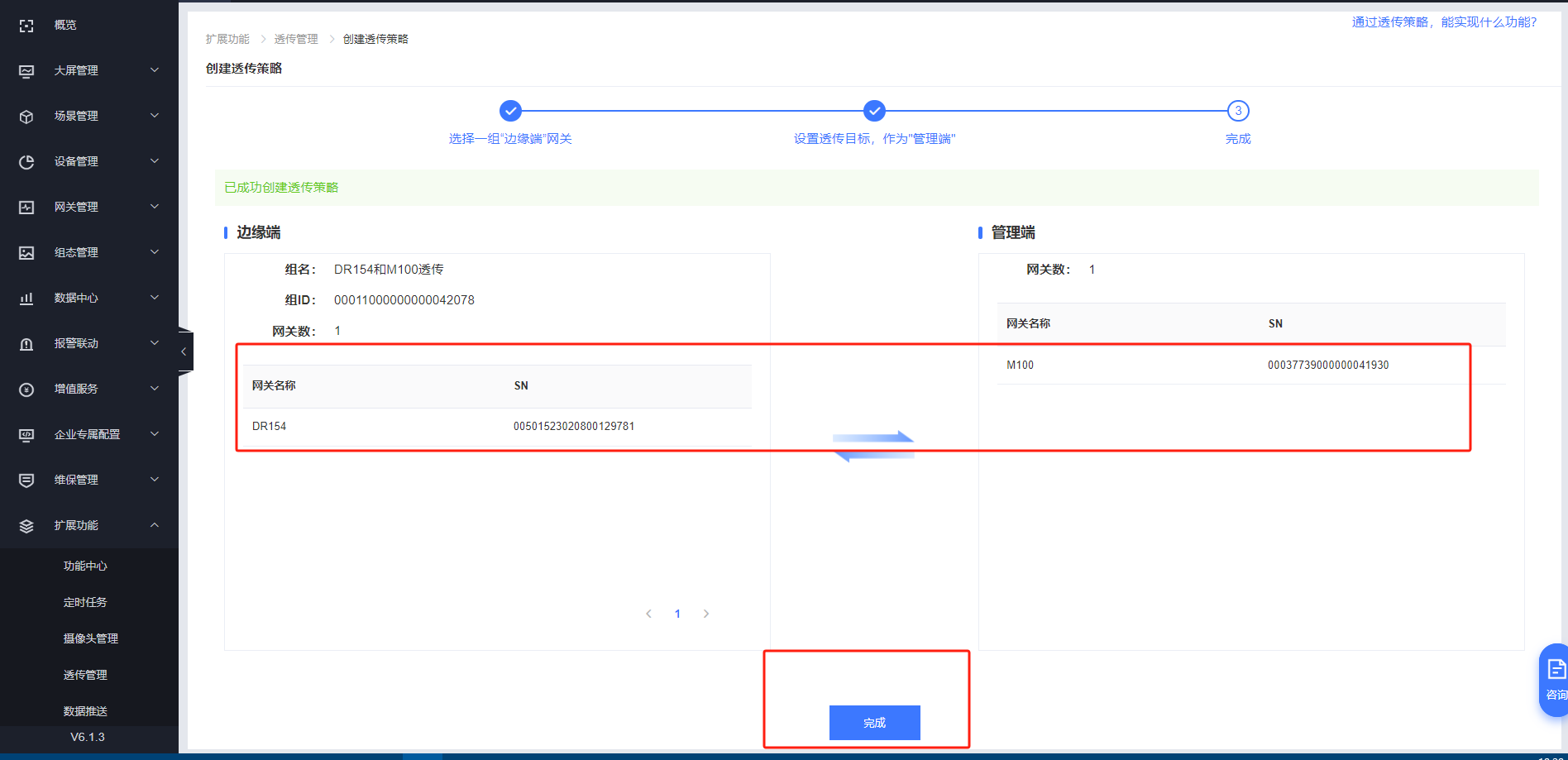

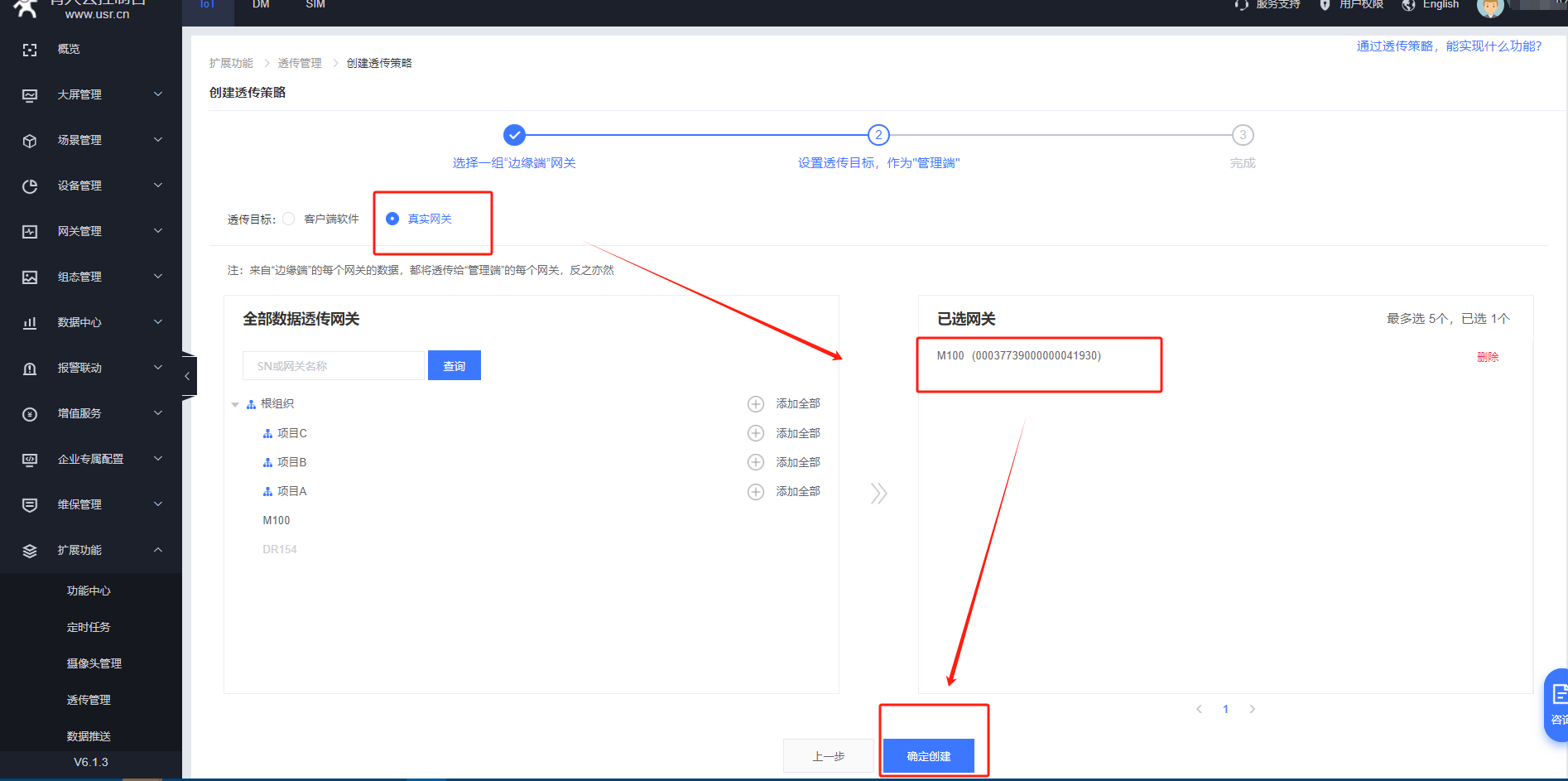

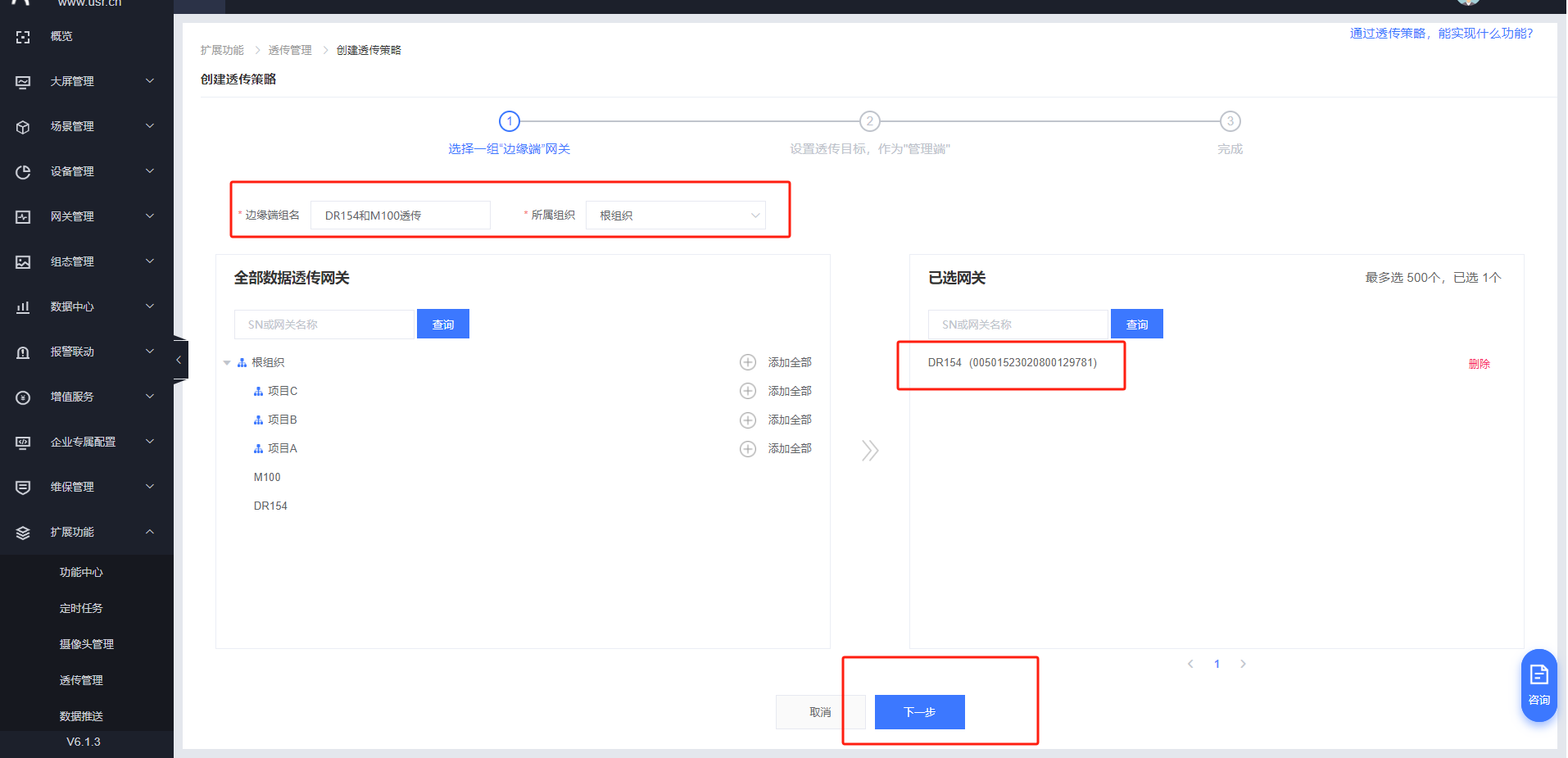

2、自己命名,组织选择154和M100添加的组织

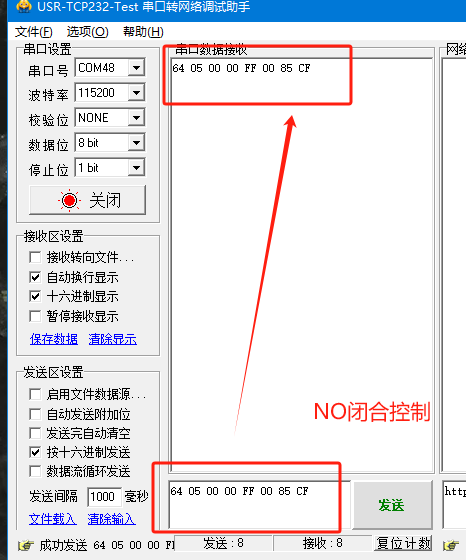

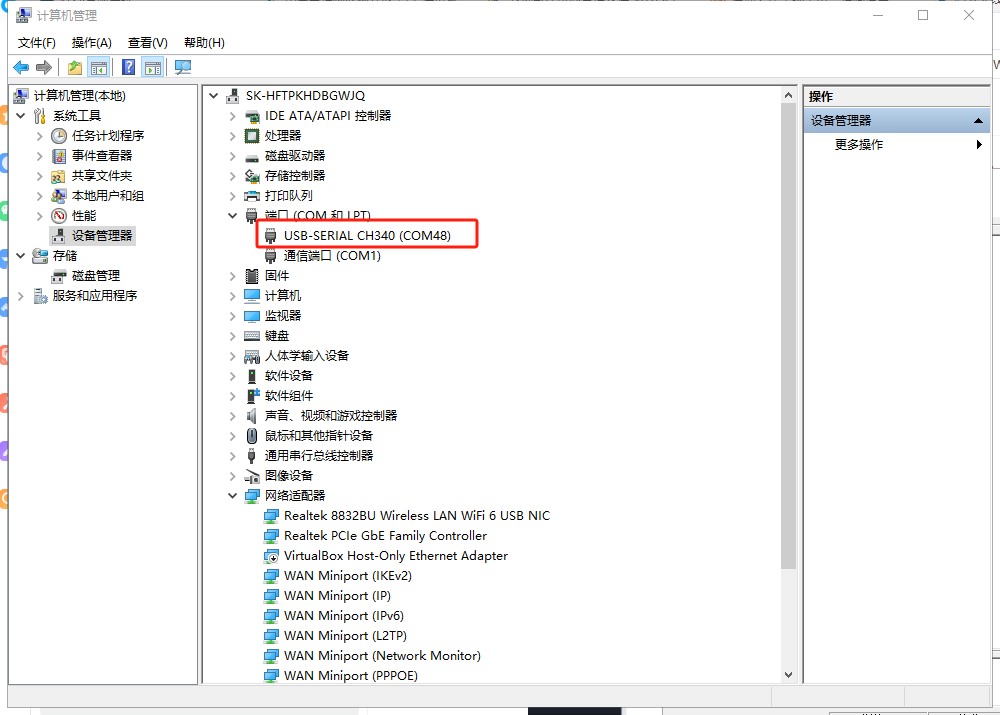

七、测试通信1.DR154用485转usb接电脑，用串口调试助手软件打开电脑识别的com口，模拟串口设备.

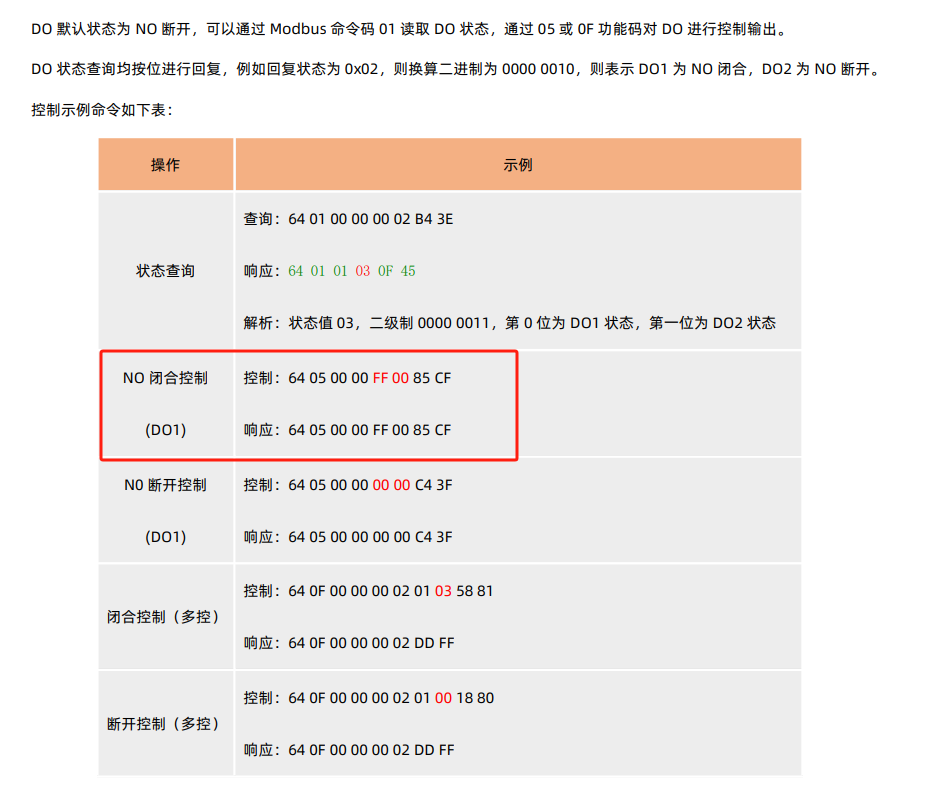

M100的指令可以看一下M100的说明书：/Download/1202.html
撰写人：lihuiying
