一、资料下载
1.说明书：/Download/982.html
2.规格书：/Download/983.html
3.AT指令集：/Download/984.html
4.设置软件：/Download/1050.html（旧V1版本设备使用此软件）
/Download/826.html（新V2版本设备使用此软件）
二、准备工作
1.SUDONG-DR154一台
2.USB转485转换器
3.电脑一台
三、配置过程

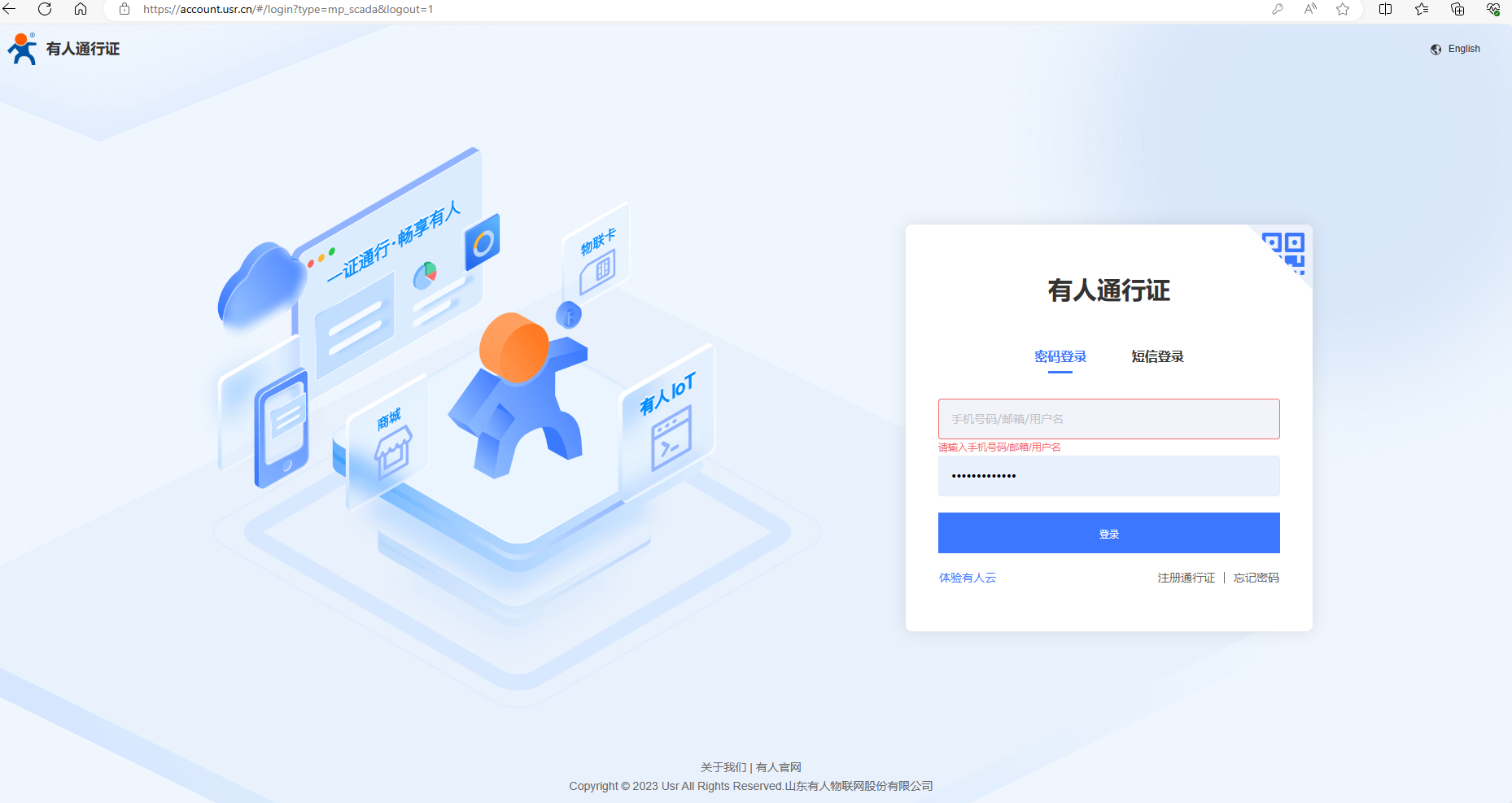

1.登录速动云：https://account.shop.louxingsudong.top/#/login?type=mp_scada&logout=1

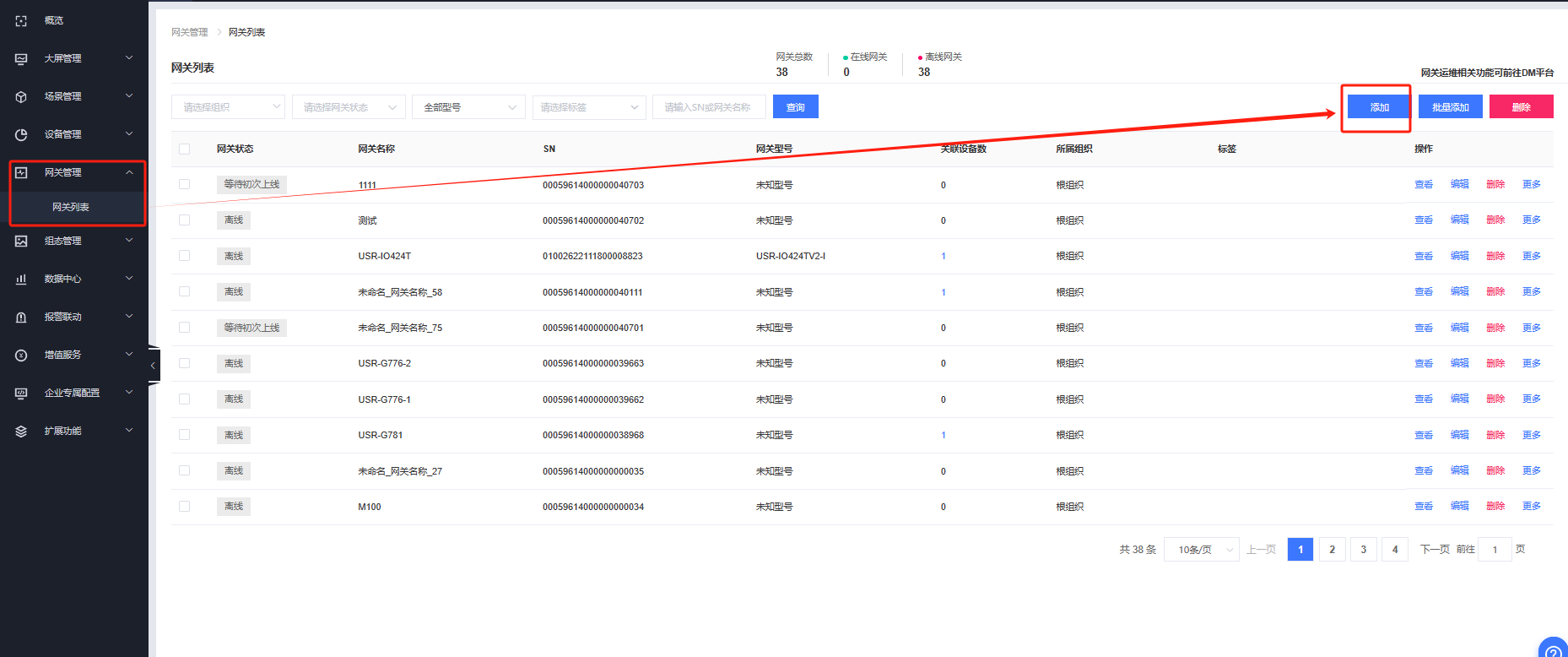

添加网关：网关管理--网关列表--添加
填入网关名称--选择根组织--选择SN不支持，点这里--开启速动云透传--点击保存

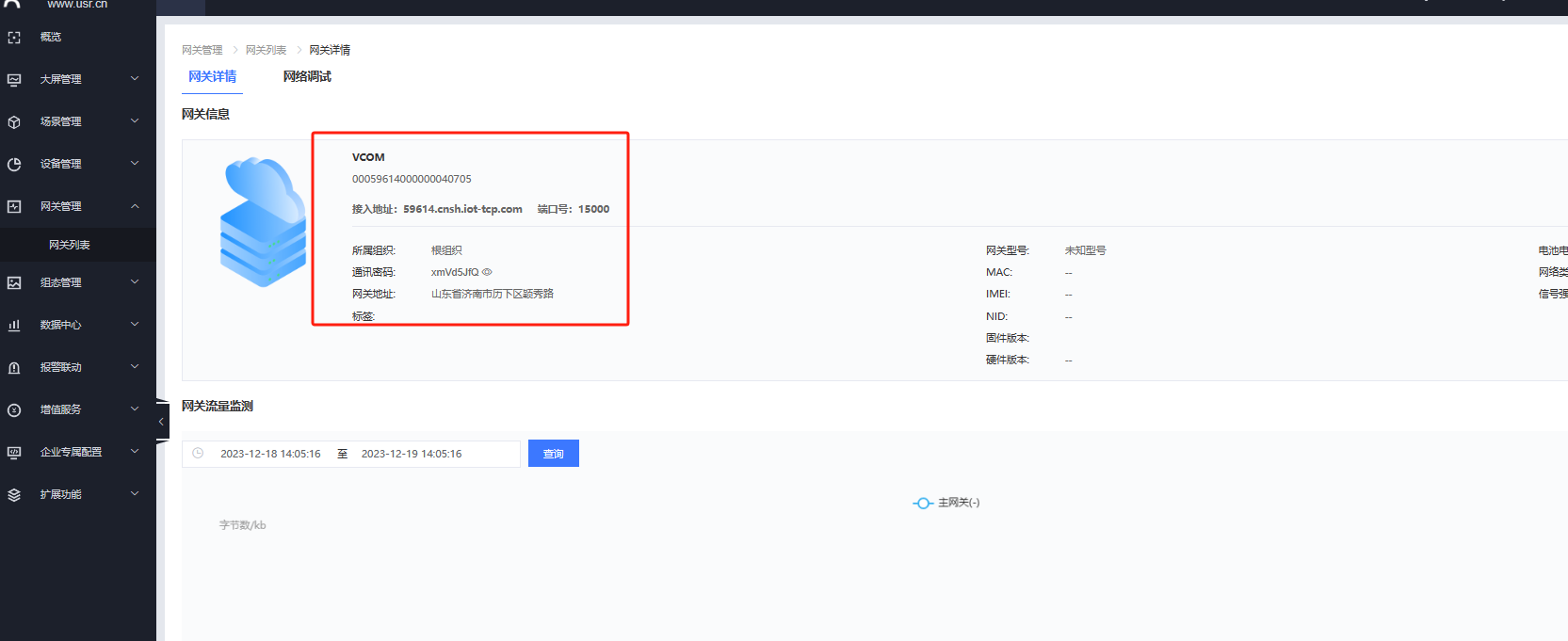

此时获取到速动云分配的接入地址和ID密码，需要将此信息填入到网关设备中
2.配置DR154在速动云上线

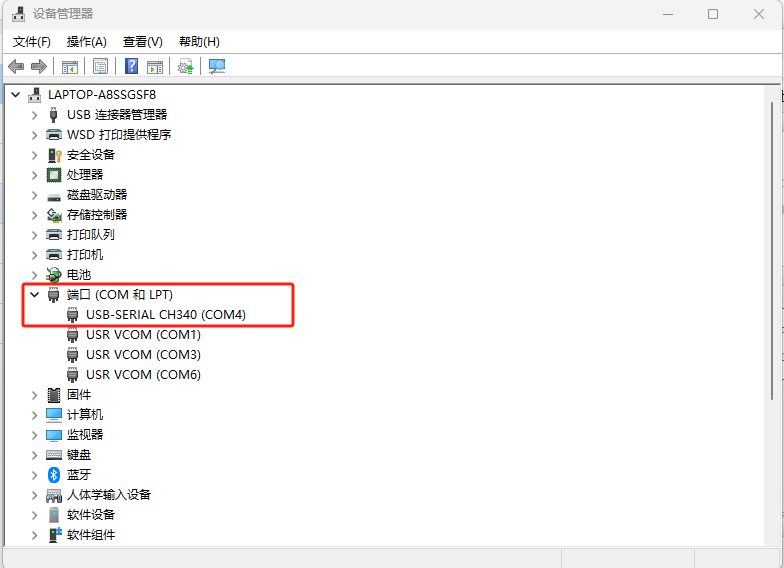

使用USB转485转换器将DR154接入到电脑，注意A接A ,B接B。电脑打开控制面板，查看转换器COM口号

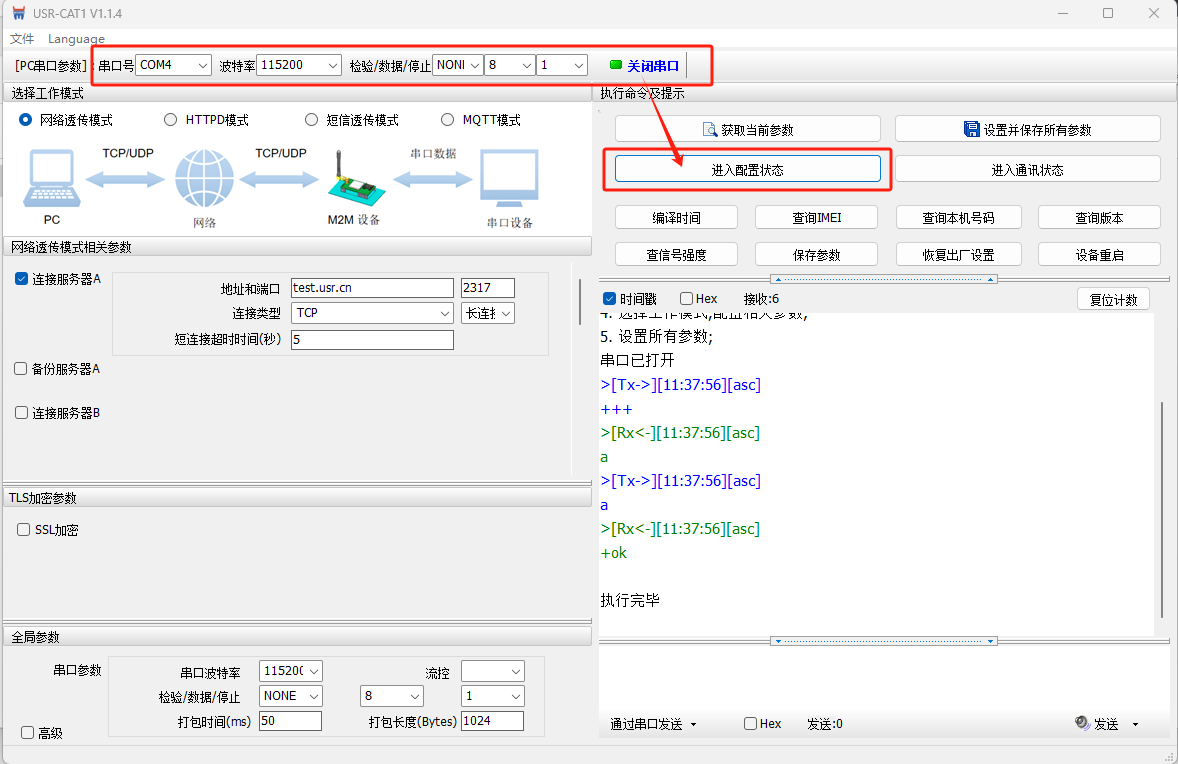

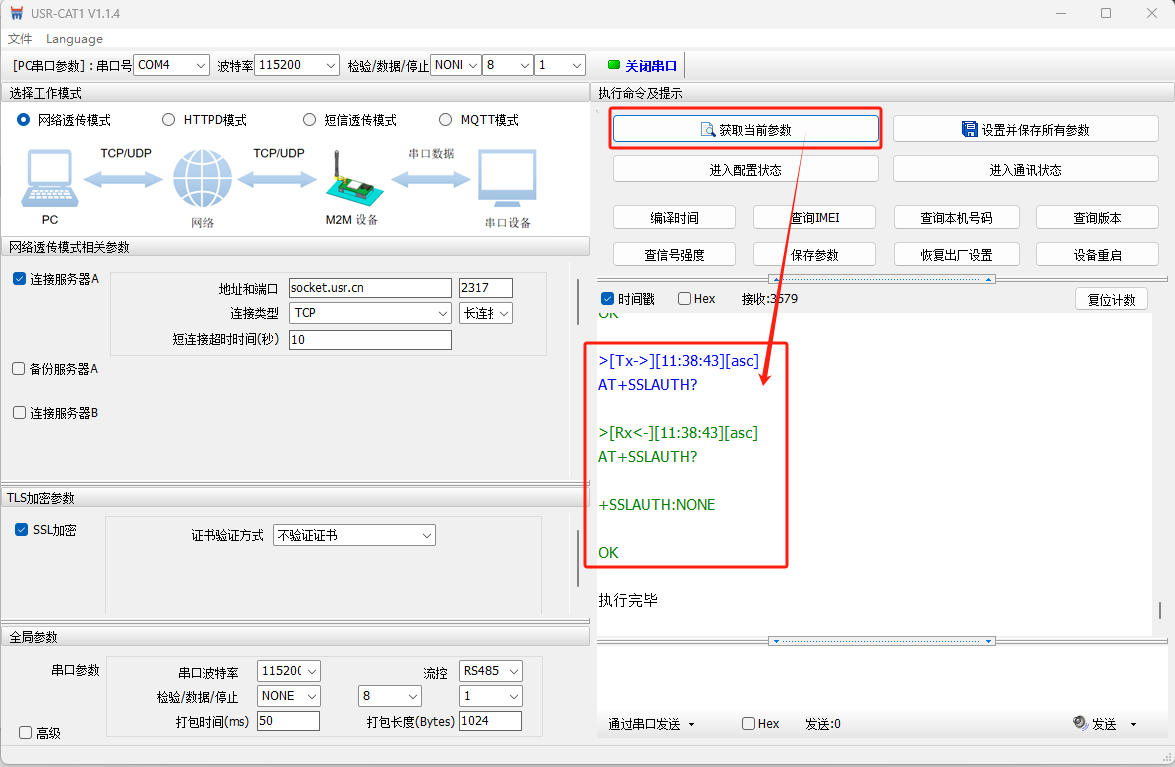

打开154上位机软件，选择COM口，115200 N 8 1，打开串口，点击进入配置状态
获取当前参数

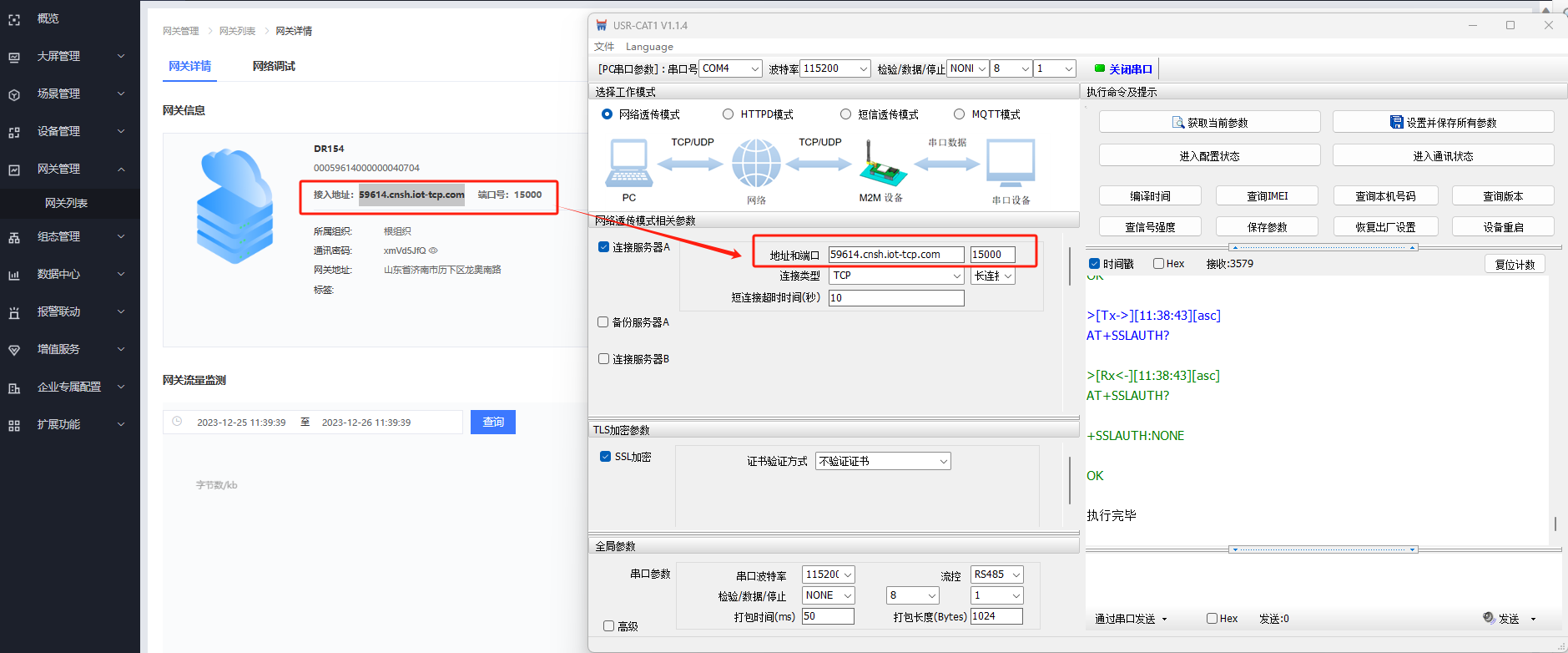

填入速动云分配的接入地址

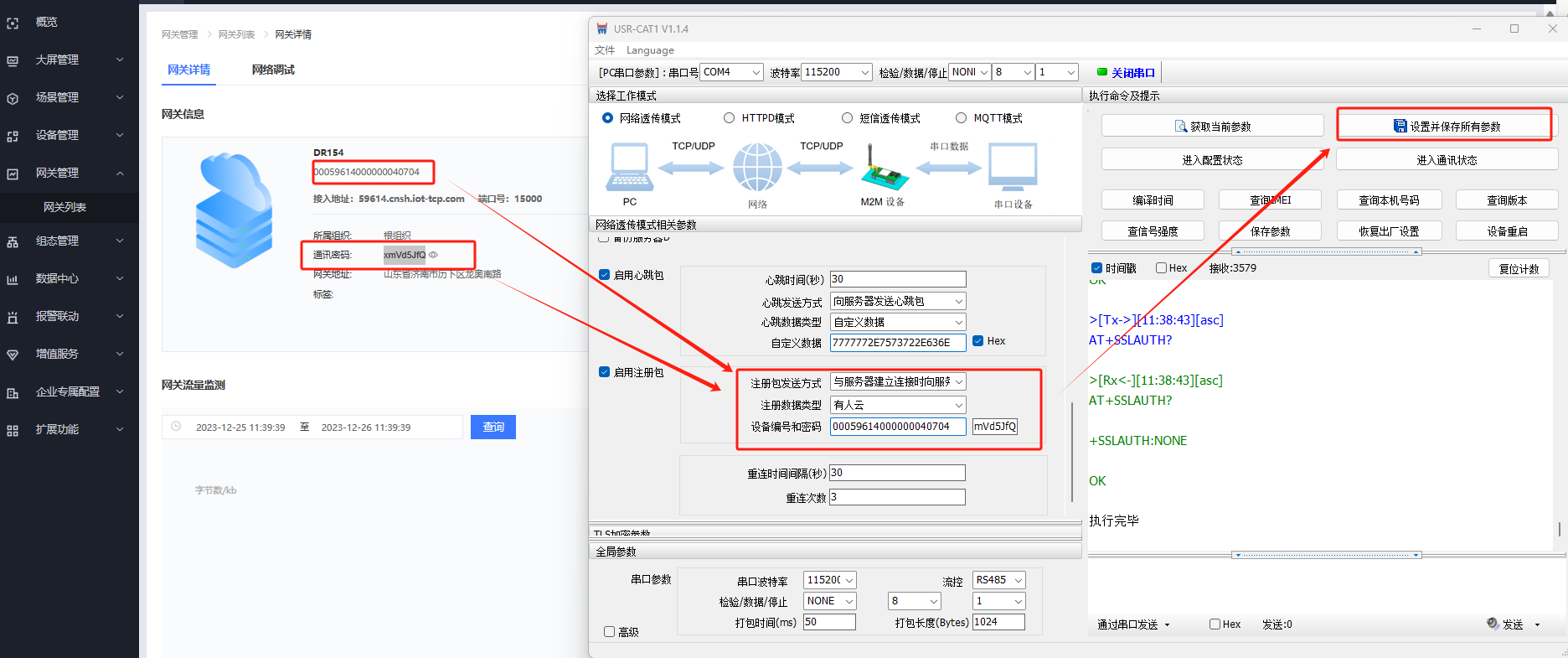

填入速动云分配的ID和密码，设置并保存所有参数，重启设备
即可看到设备在速动云端在线
3.与V3版本虚拟串口创建透传组

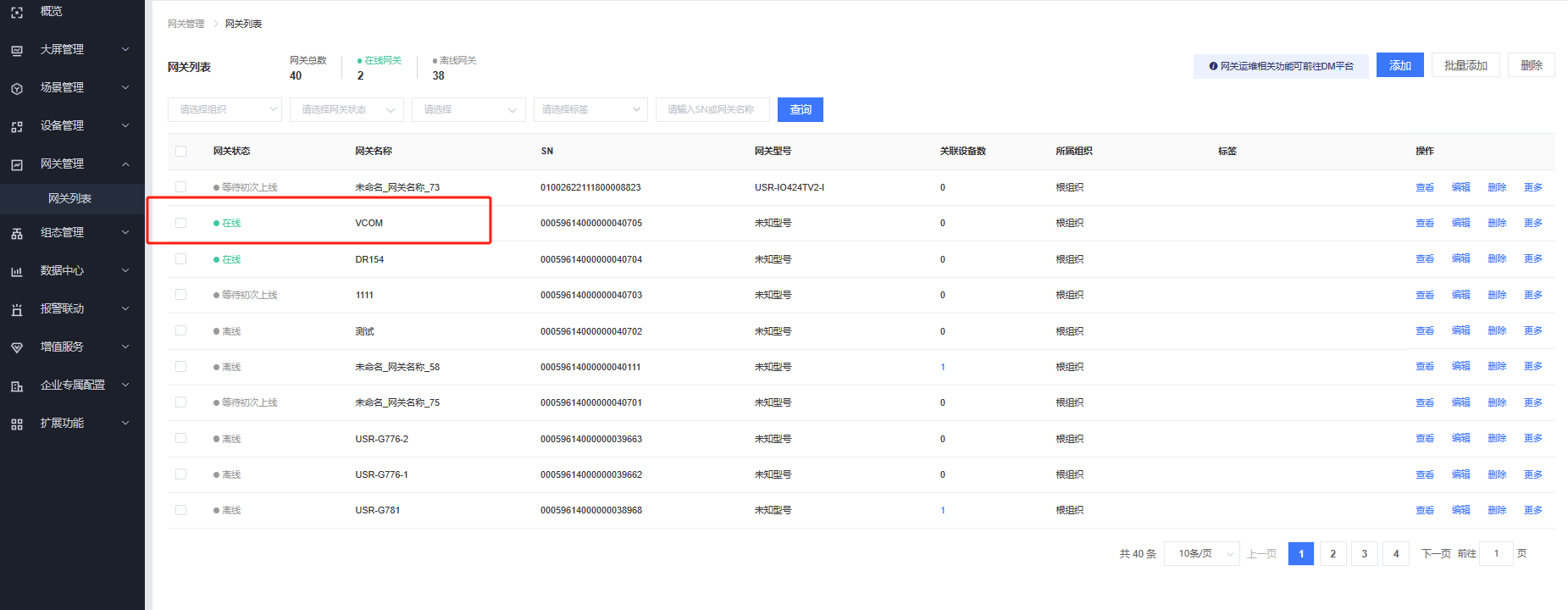

网关管理--网关列表--添加，选择SN不支持的方式添加一个名为VCOM的网关，同时开启速动云透传功能

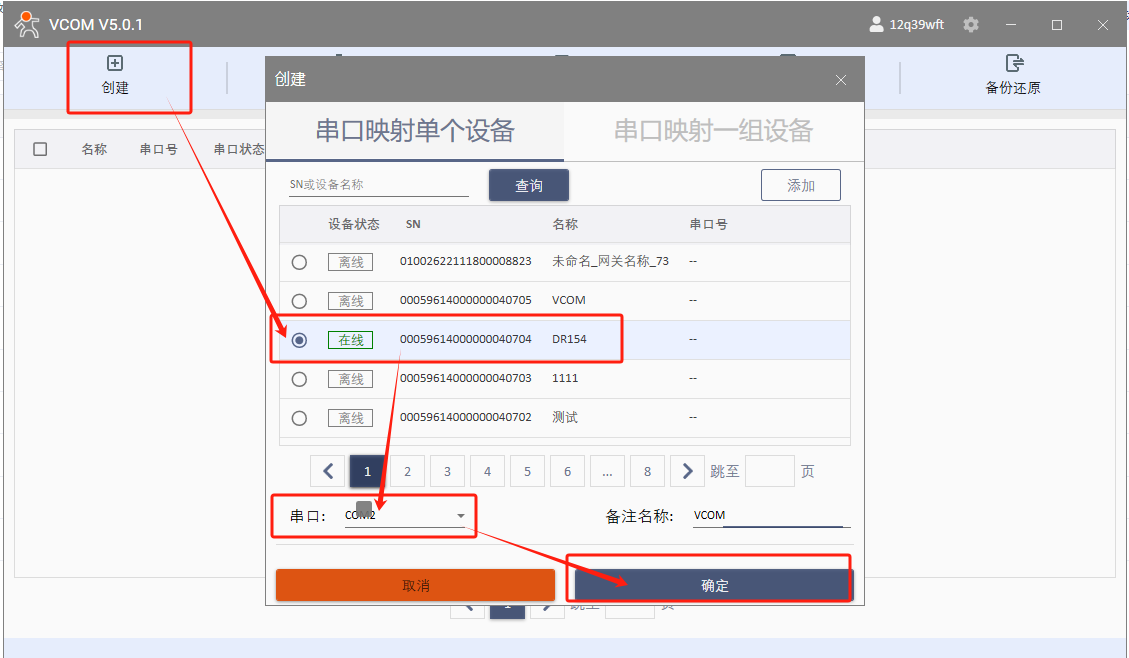

打开V3版本的虚拟串口软件，点击添加串口，填入图中示例信息，点击确认。

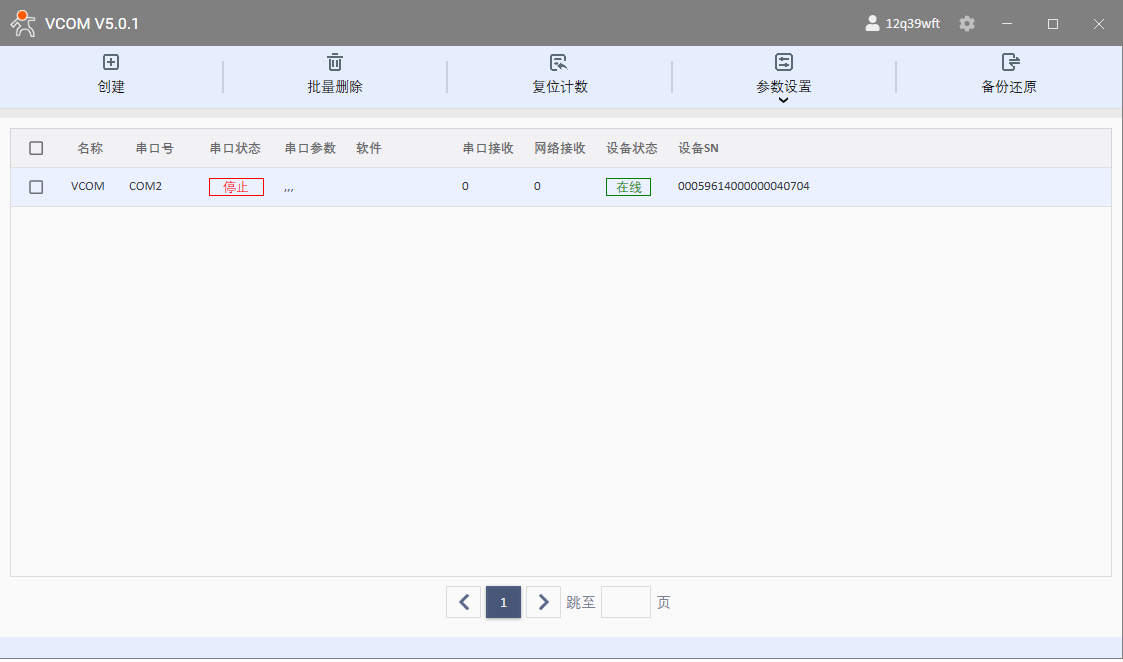

即可看待设备在云端在线

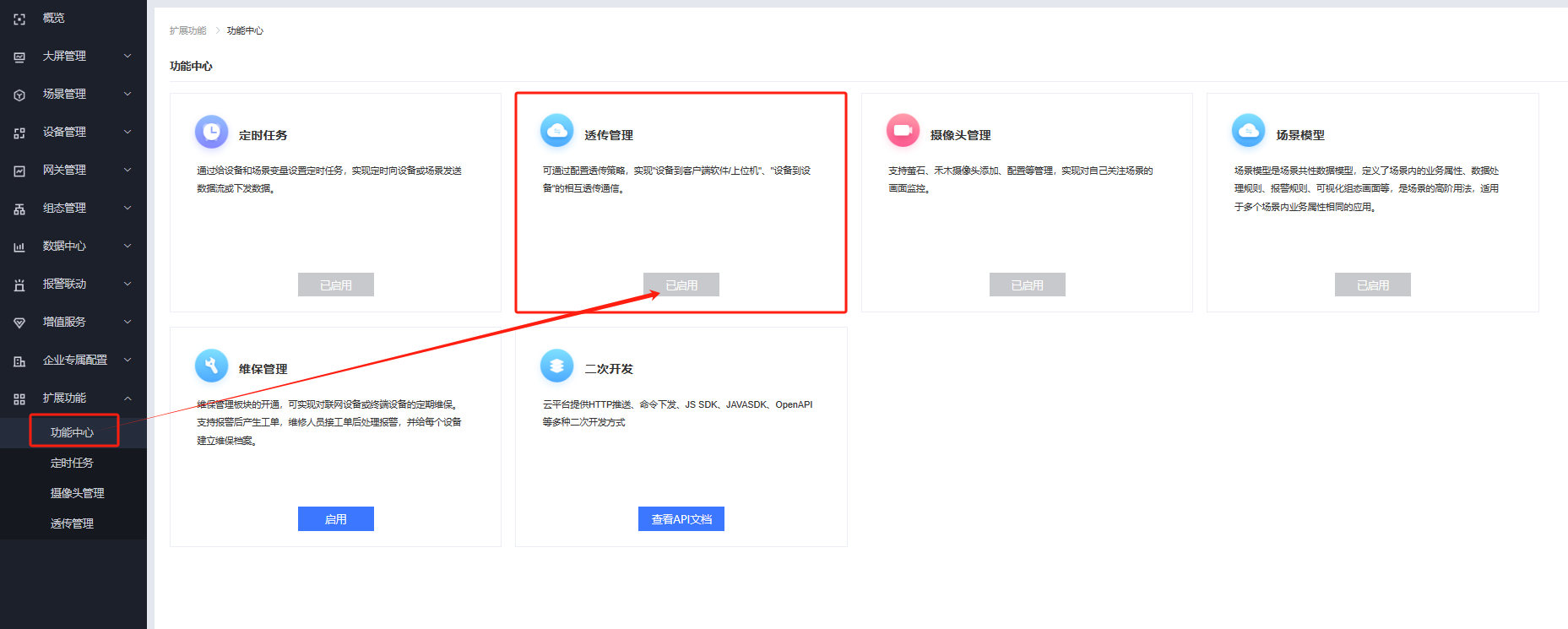

速动云扩展功能--功能中心--启用透传管理功能

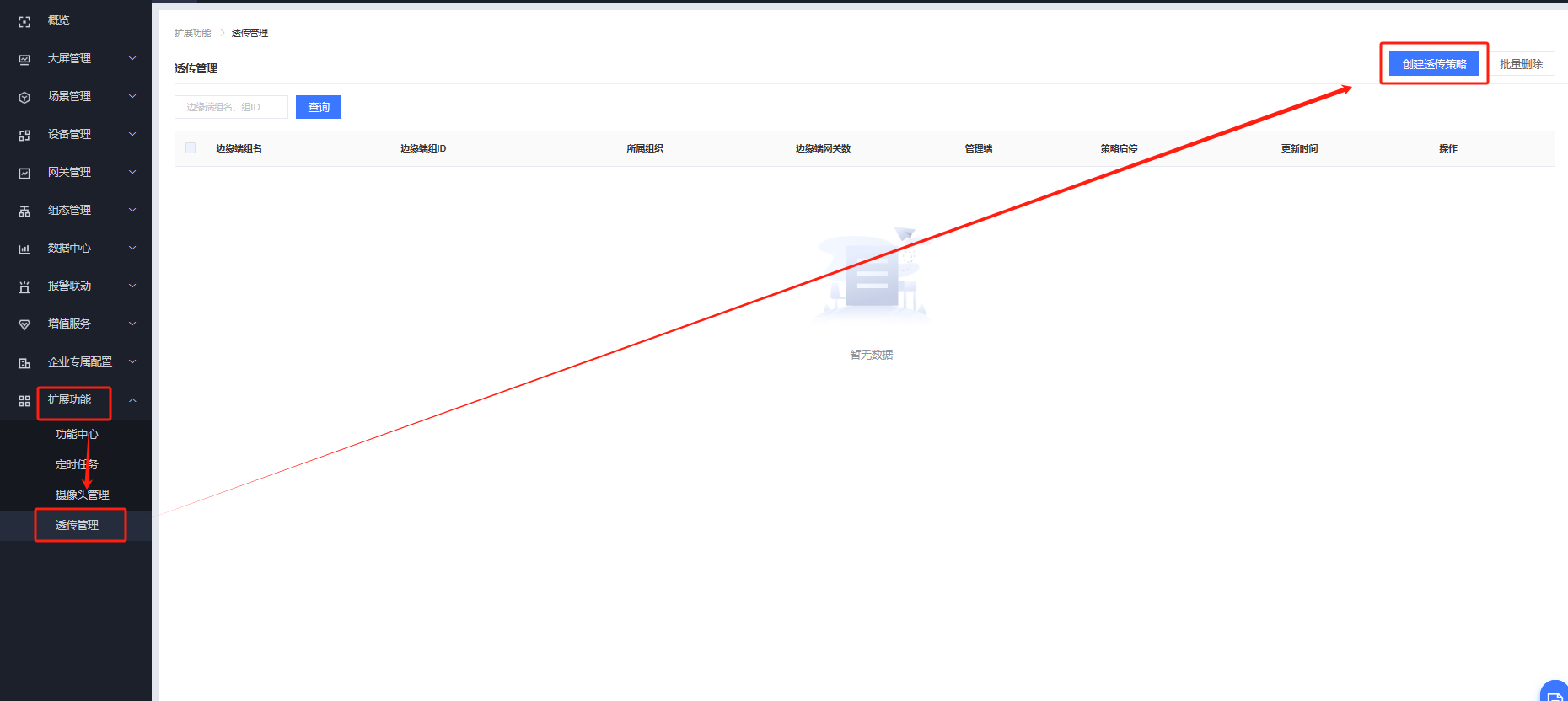

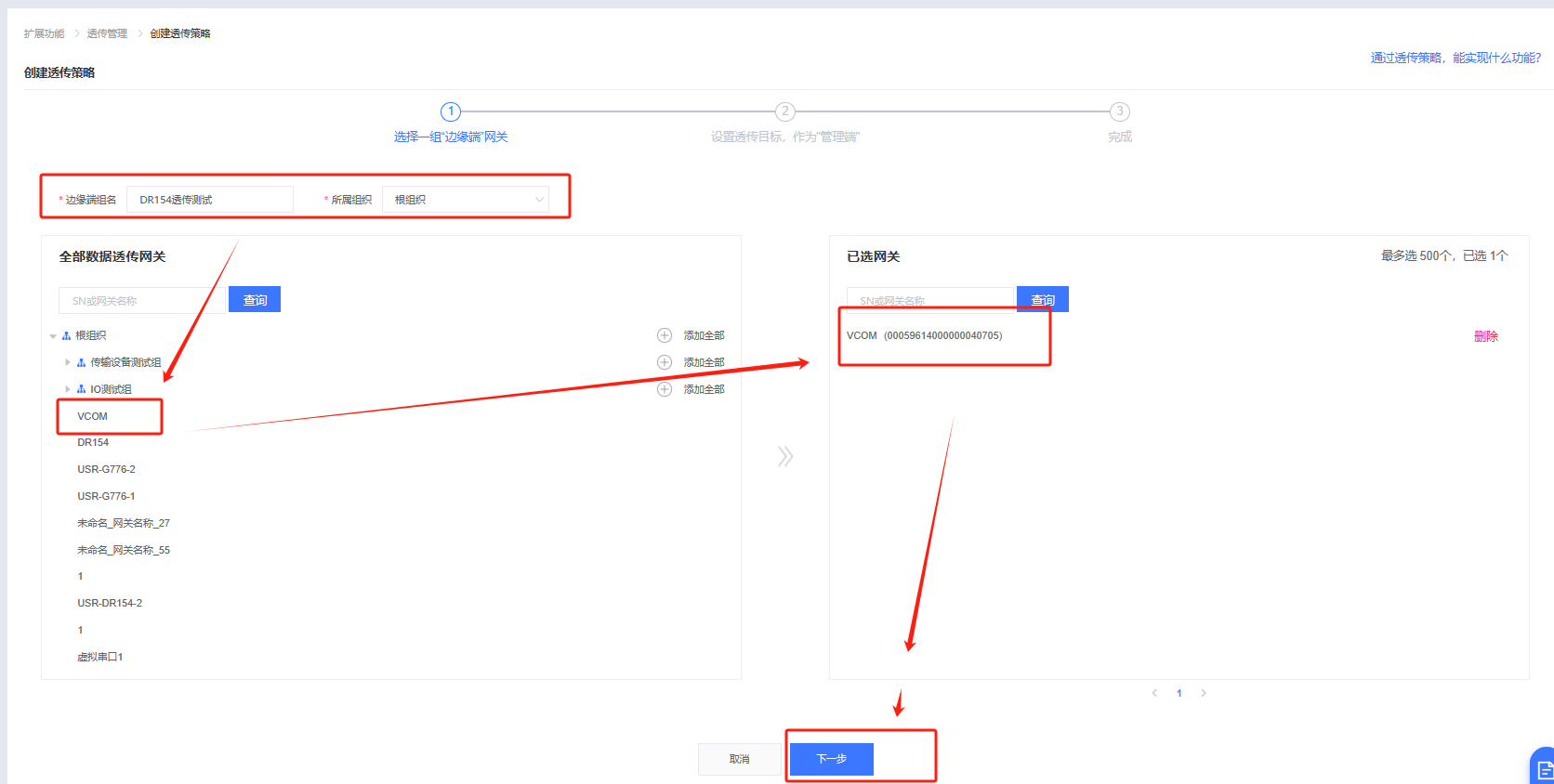

扩展功能--透传管理--创建透传策略

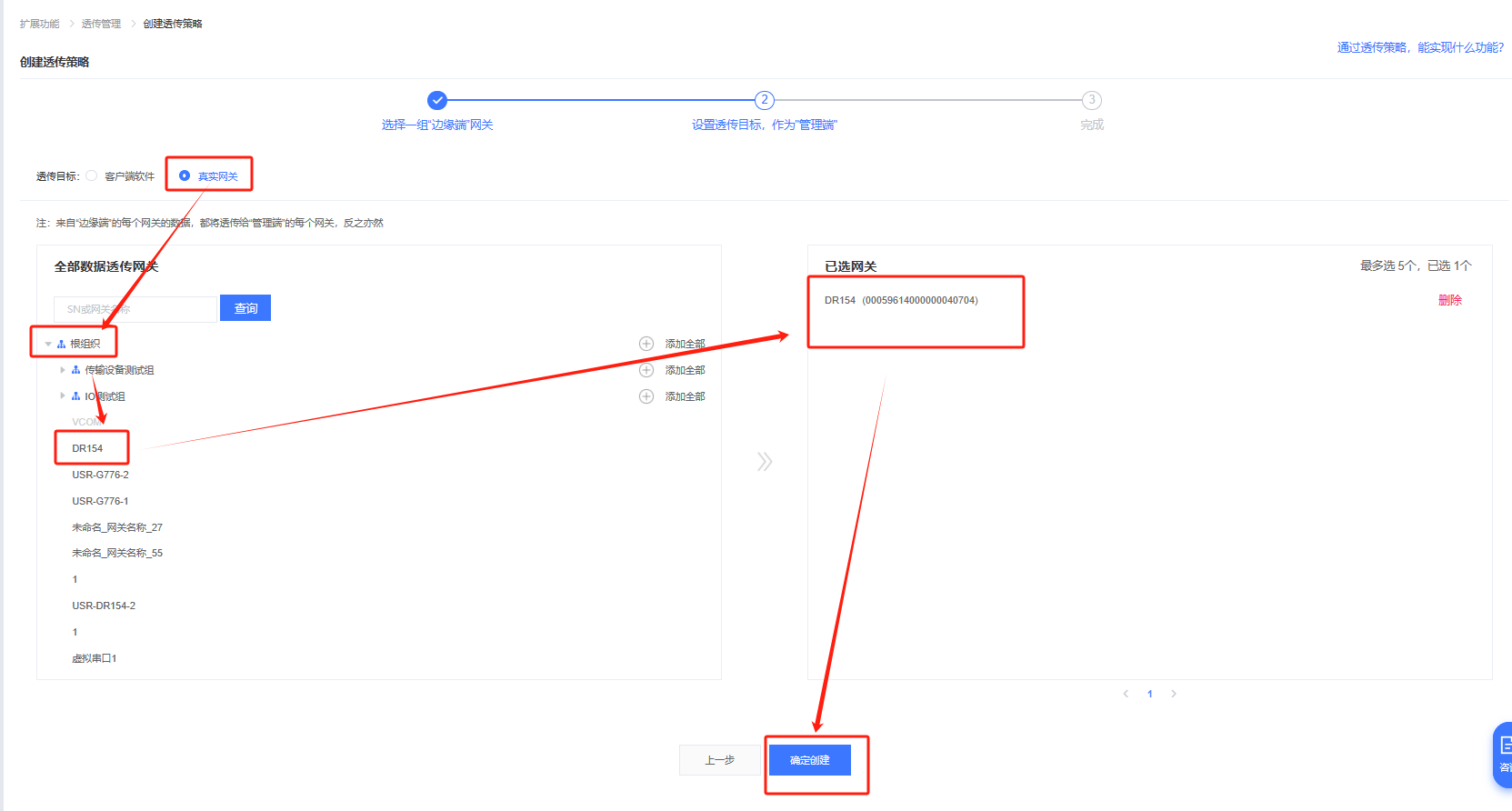

选择透传组边缘端
选择透传组管理端

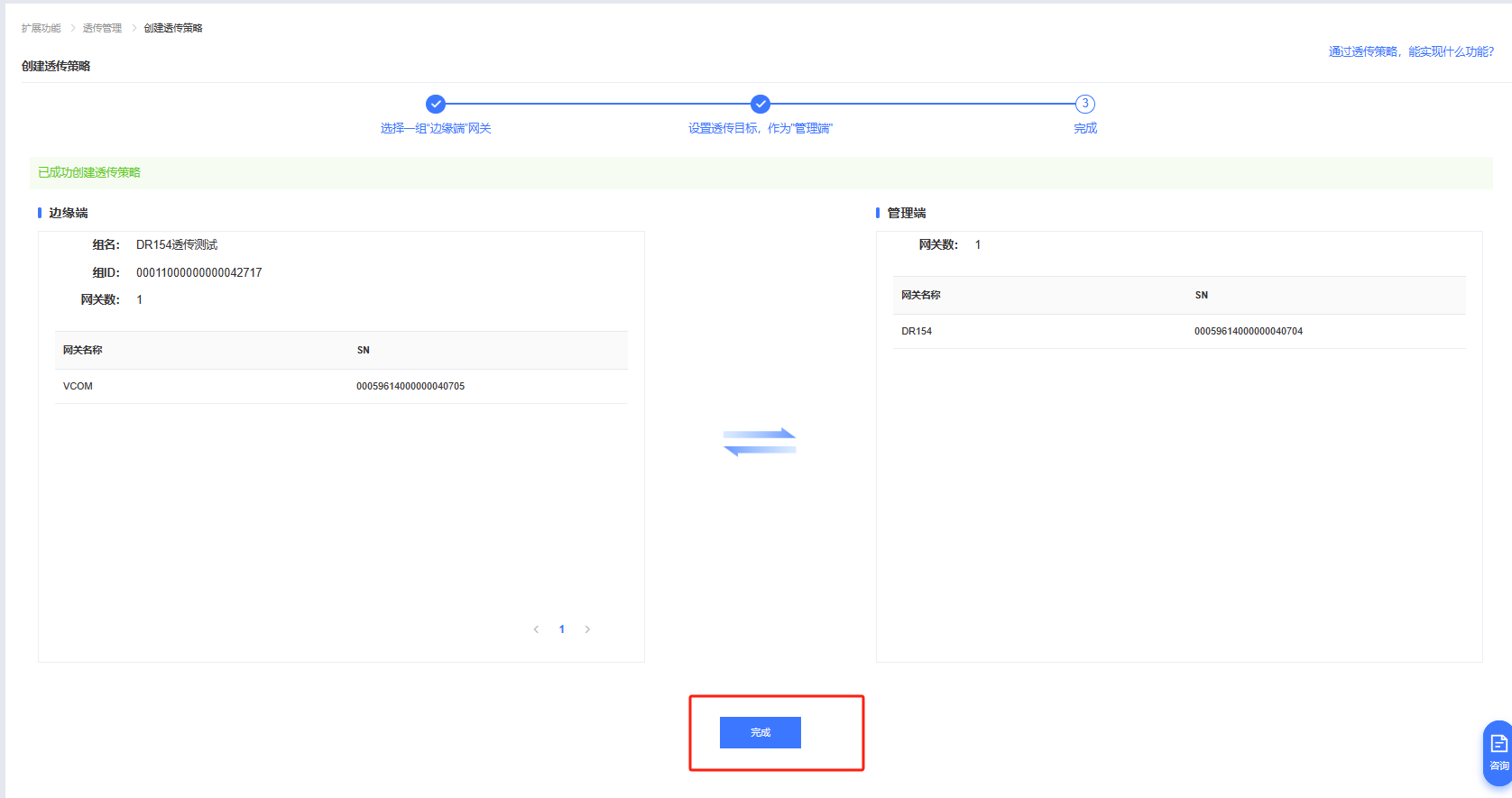

透传策略创建成功

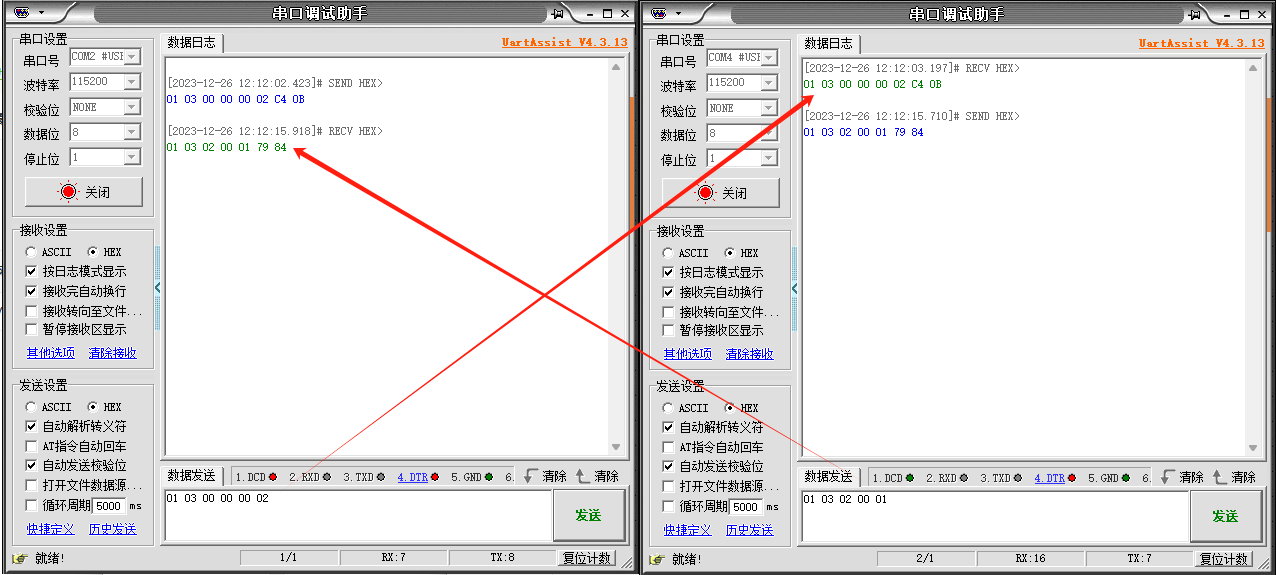

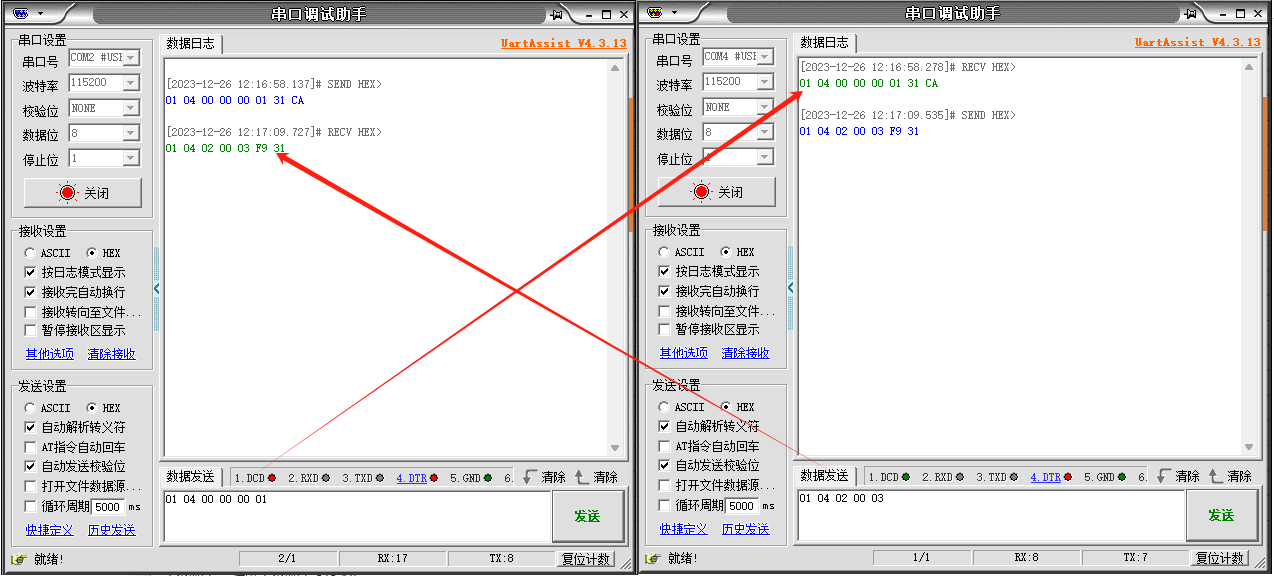

数据交互测试成功
4.与V5版本虚拟串口创建透传组

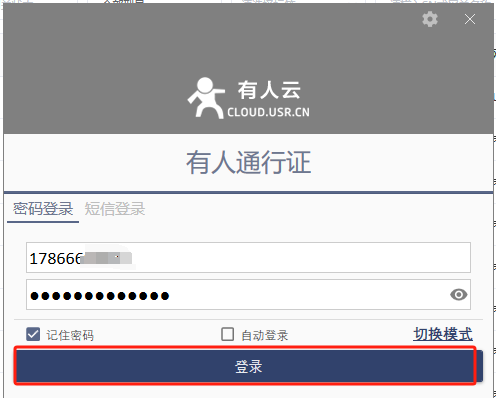

打开V5版本虚拟串口，登录速动云账号密码，创建虚拟串口
创建透传策略
透传策略创建成功
数据交互测试成功
注意:V3版本的虚拟串口和V5版本的虚拟串口二选一即可
撰写人：尹工
