本测试以SUDONG-G771设备为例默认设置连接电脑测试通信

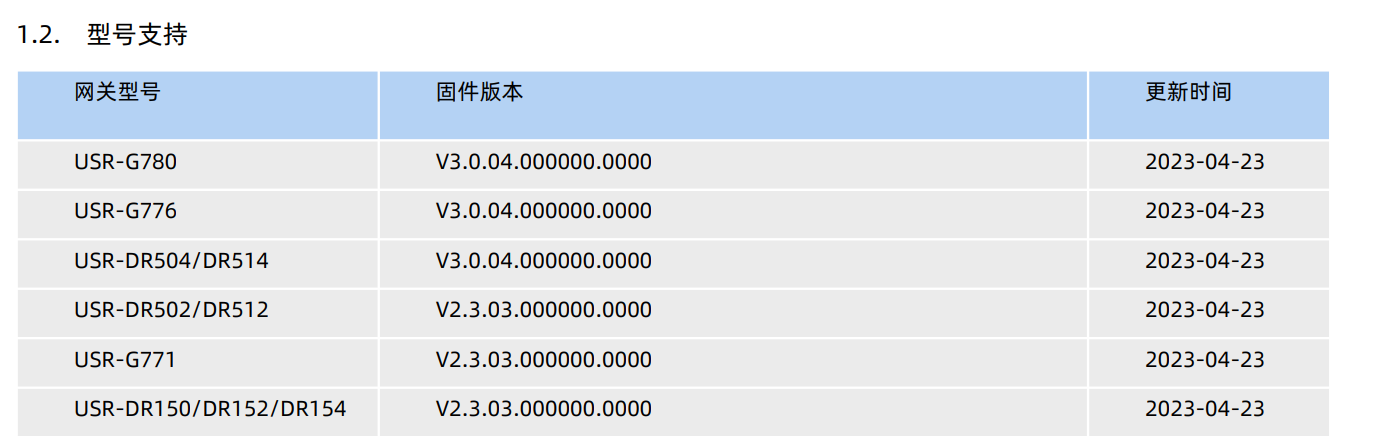

支持硬件上云的网关型号如图
案例中使用的G771支持硬件上云配置， 手机扫一扫，即可跳转登录，轻松运维
一、资料下载
1、G771说明书：/Download/982.html
2、G771规格书：/Download/983.html
3、modbus slave软件：百度下载即可
二、准备工作
1、SUDONG-G771产品 数量1个
2、电源适配器 12V 数量1个
3、485转USB调试线 数量1根
4、电脑 数量1台
三、连接框图
终端串口设备--G771--速动云平台
说明：本案例中，串口设备用电脑端的modbus slave软件模拟来测试
硬件连接：G771采用12v电源适配器供电，串口端使用usb转485的串口线连接电脑。
四、设备硬件扫码上云

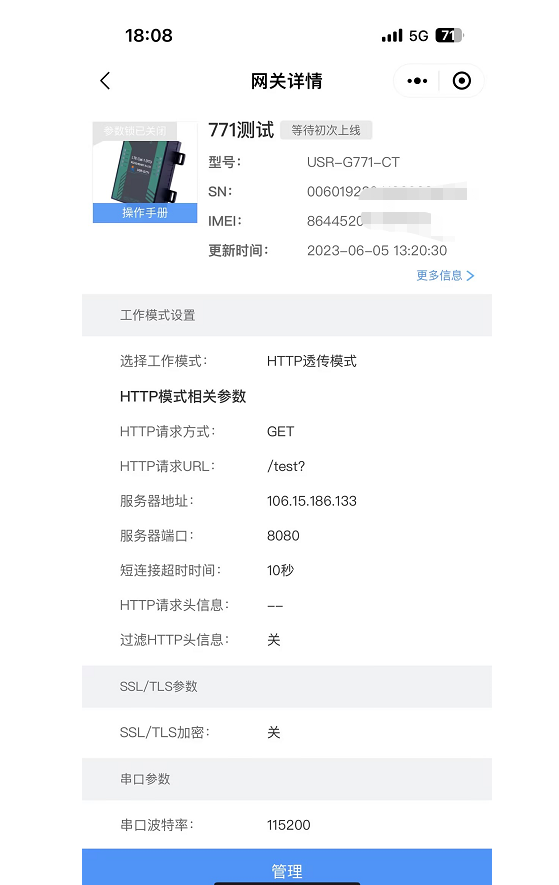

DTU 外壳正面贴有设备专属二维码，手机微信扫描该二维码即可跳转速动云手机端微信小程序登录添加网关设备。速动云手机端微 信小程序介绍可以参考说明：#/document/334.htm
目前设备有两种设置方式
1.云端配置（推荐使用）

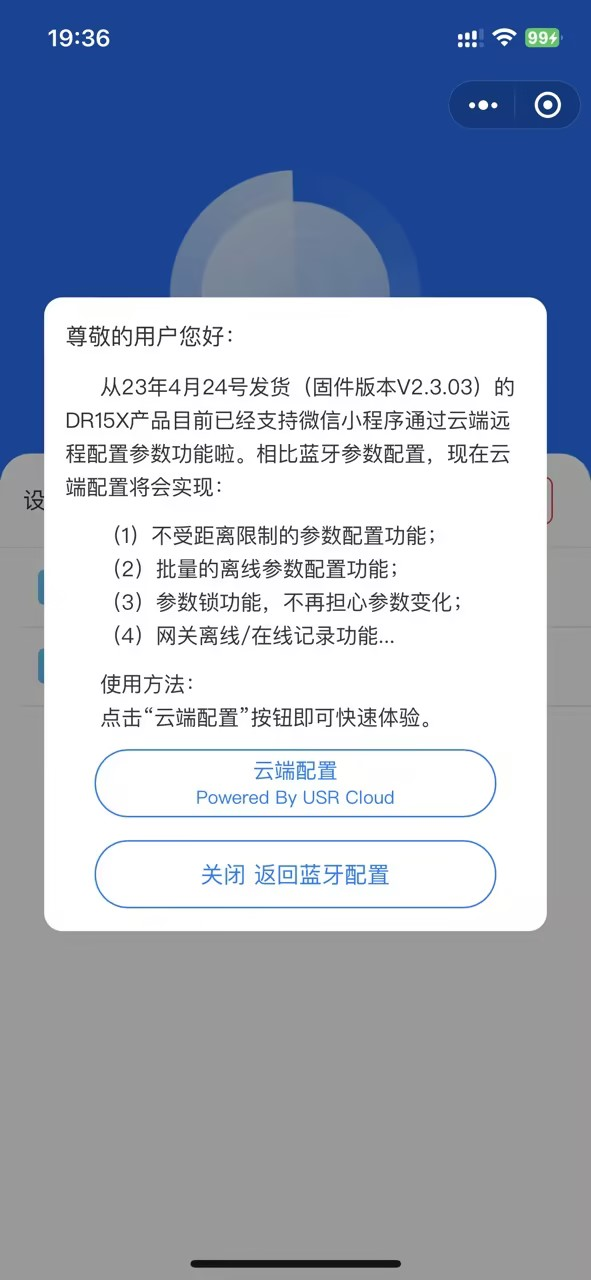

2.蓝牙配置：可以参考
云端配置方式：
1.微信注册登录 如果未曾注册过速动通行证，可以直接勾选“我已阅读并同意《用户协议》”并点击“微信手机号快捷登录”，弹窗同意小程序获取 手机号权限之后，若当前手机号未注册速动通行证，则将为您直接注册速动云账号。注册登录成功之后即可配置网关添加,

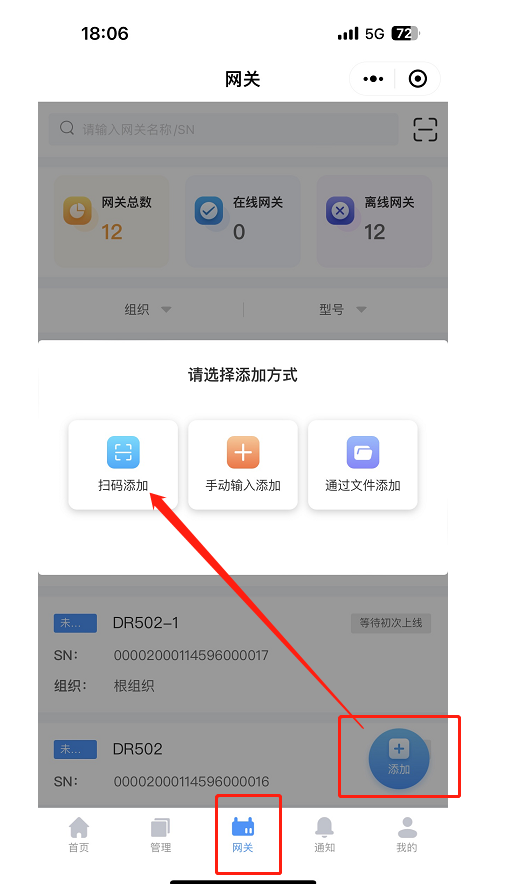

2、进入到扫码添加界面，扫描设备正面标签二维码---会自动显示设备的SN以及MAC信息
3、如上章节跳转至设备添加界面之后，自定义网关名称，选择网关所属组织，点击确认添加。稍等片刻或者给 DTU 重新上电后即可显 示网关设备在线，网关在线后即可对网关进行参数锁、重启、恢复出厂、参数配置等操作

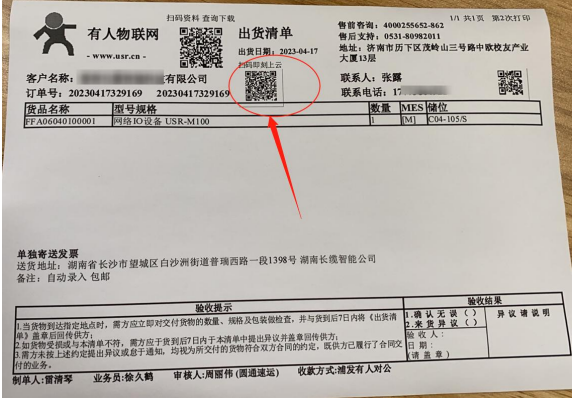

4、若批量购买网关设备，可以扫描纸质出货单上方的“扫码即可上云”二维码批量添加网关设备

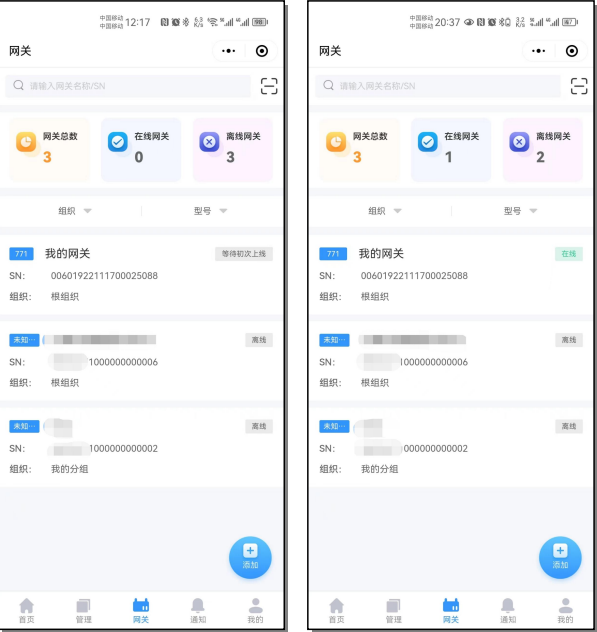

若网关暂时不需要上电或者联网使用，添加好设备无需等待。首次在账号中添加的设备会显示状态为“等待初次上线”，当上电联网 使用时，网关会自动上线并更新状态为“在线”。
五、速动云参数配置

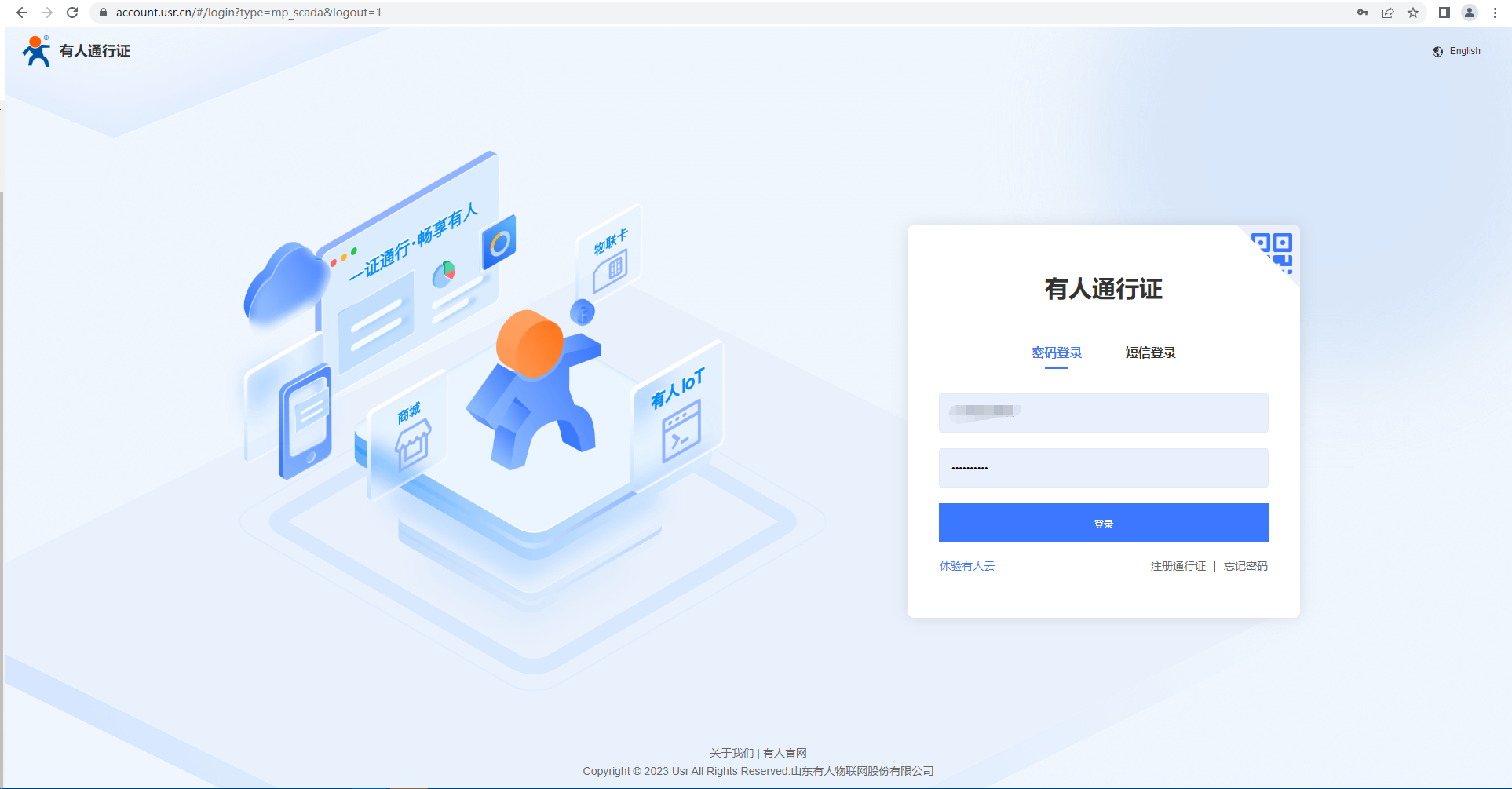

1、登录速动云，如果没有账号先申请通行证，目前只能通过手机号来注册通行证账户。
2、云平台添加设备显示

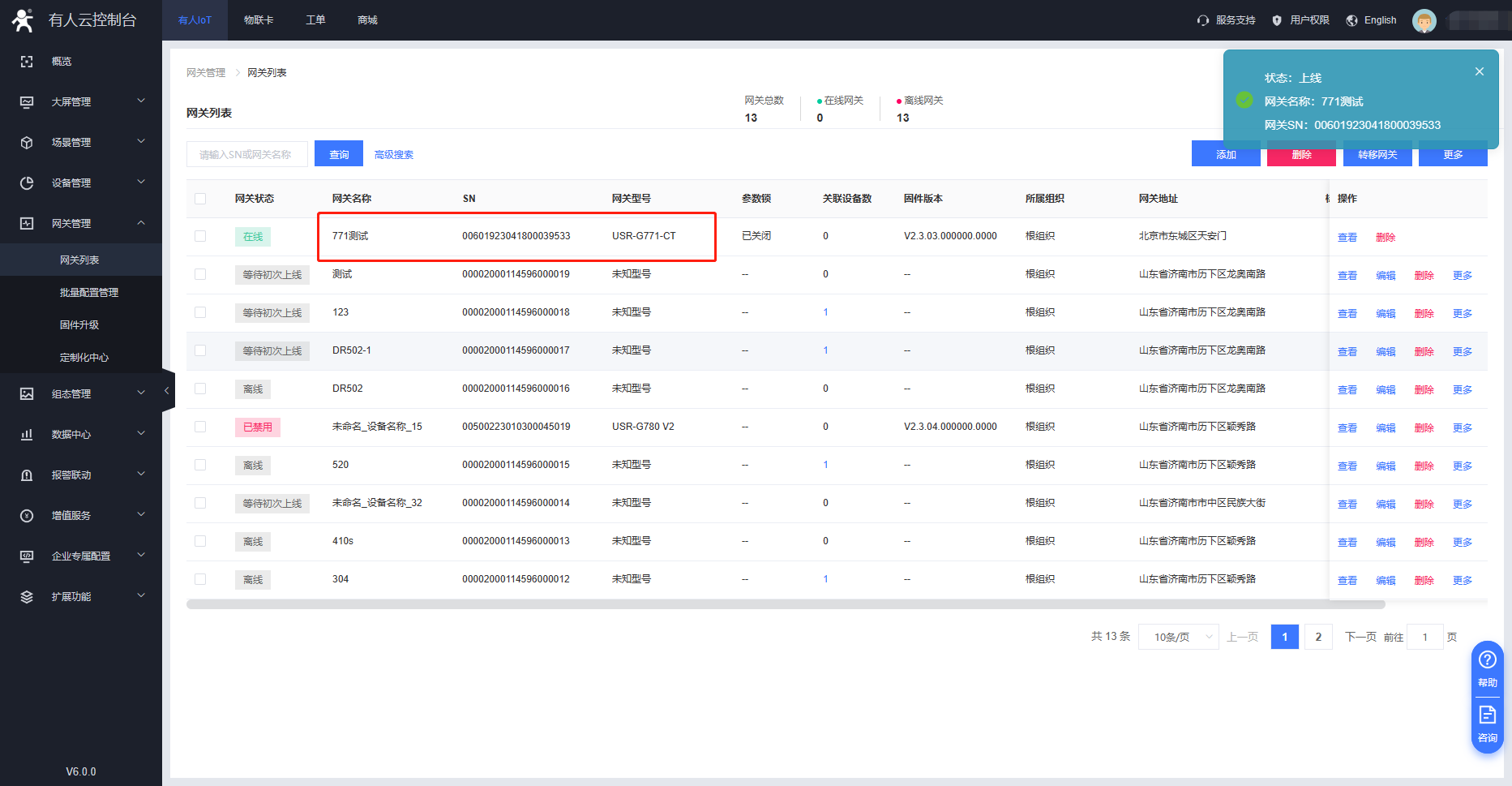

在网关管理---网关列表可以看到我们扫码添加的G771设备，如果设备目前处于离线状态，可以检查一下设备自身是否可以正常联网。在设备正常联网状态下可以重启下设备，可以看到设备的在线信息。

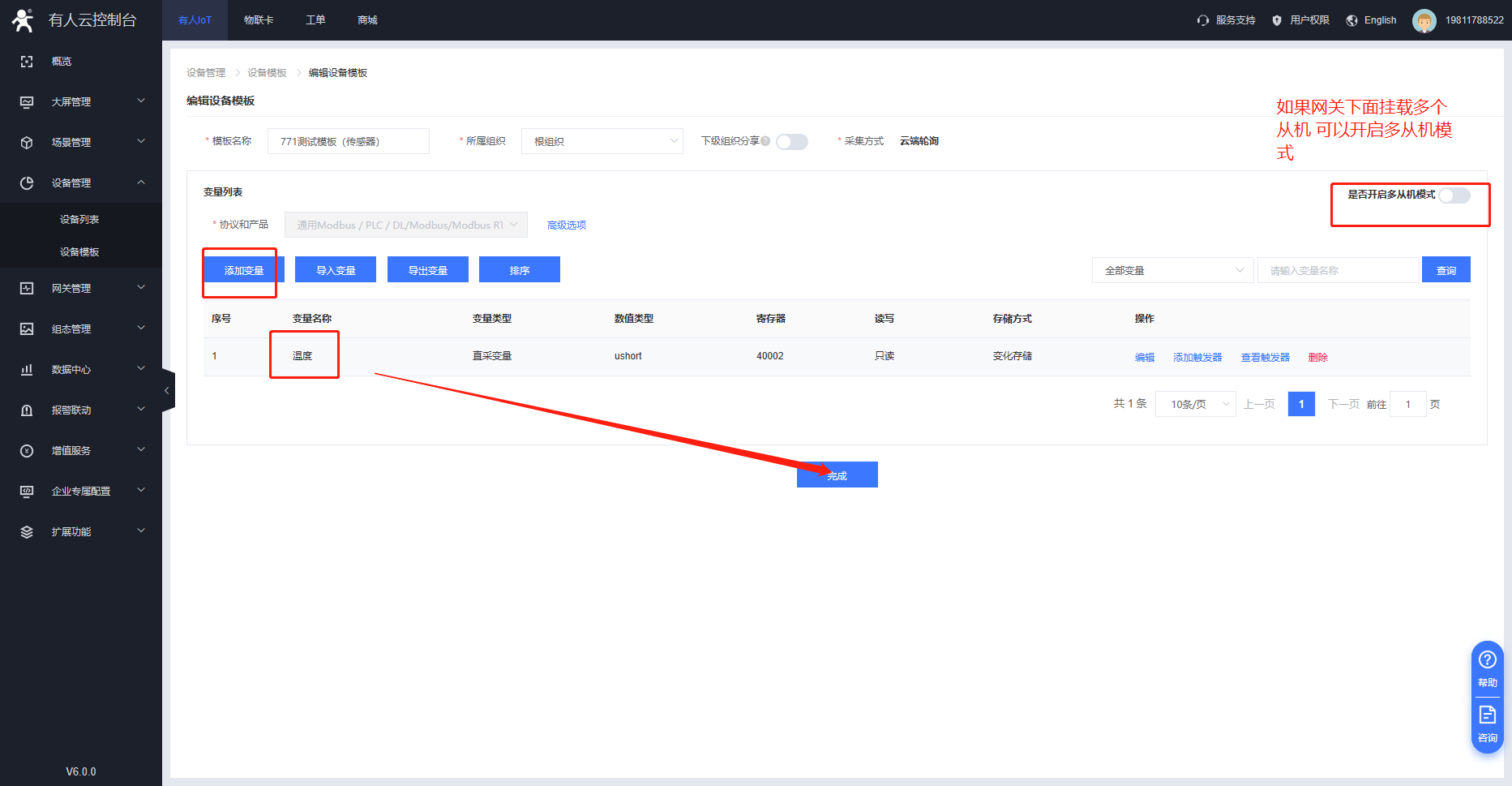

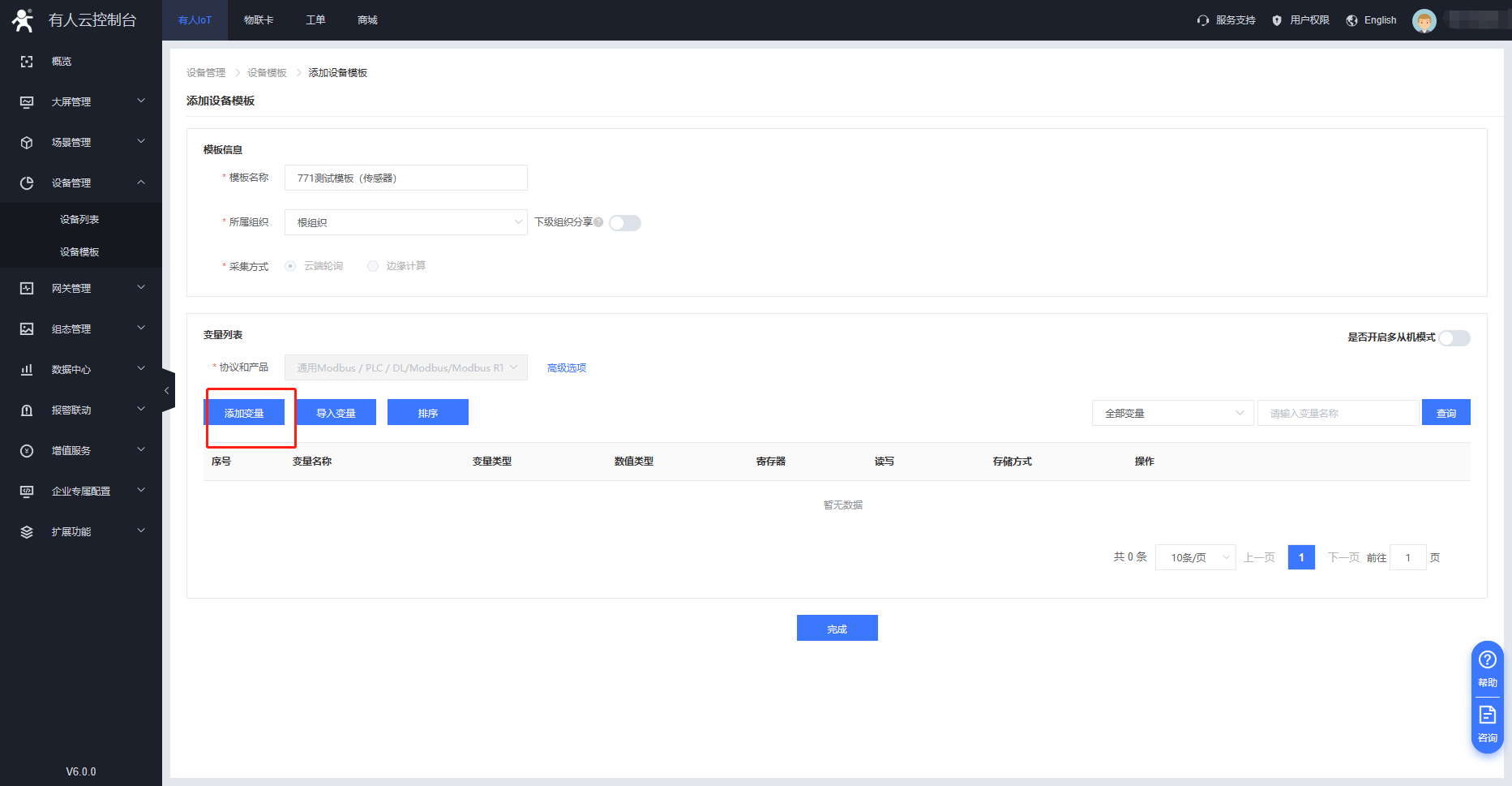

3、G771 支持modbus协议 云端轮询方式。在设备管理---设备模板界面添加需要采集的变量点。寄存器信息需要与串口设备进行匹配。
速动云寄存器地址计算方法：
寄存器的填写（需要知道终端设备的功能码寄存器的起始地址）（不清楚的需要联系终端设备的厂家）
功能码03H或06H，起始地址0000H，则填：40001；
功能码04H，起始地址000AH，则填：30011；
功能码01H或05H，起始地址0002H，则填：00003；
功能码02H，起始地址0003H，则填：10004。
格式为 功能码+寄存器地址（需要16进制转为10进制）+1
与组态软件的寄存器写法相同，填十进制寄存器地址，寄存器为起始地址+1。
如：
功能码03H或06H，起始地址0000H，则填：40001；
以这个为例，操作为只读就是功能码为03则就是4，寄存器地址16进制转换为10进制就是0000，然后+1；所以组态地址就是40001；

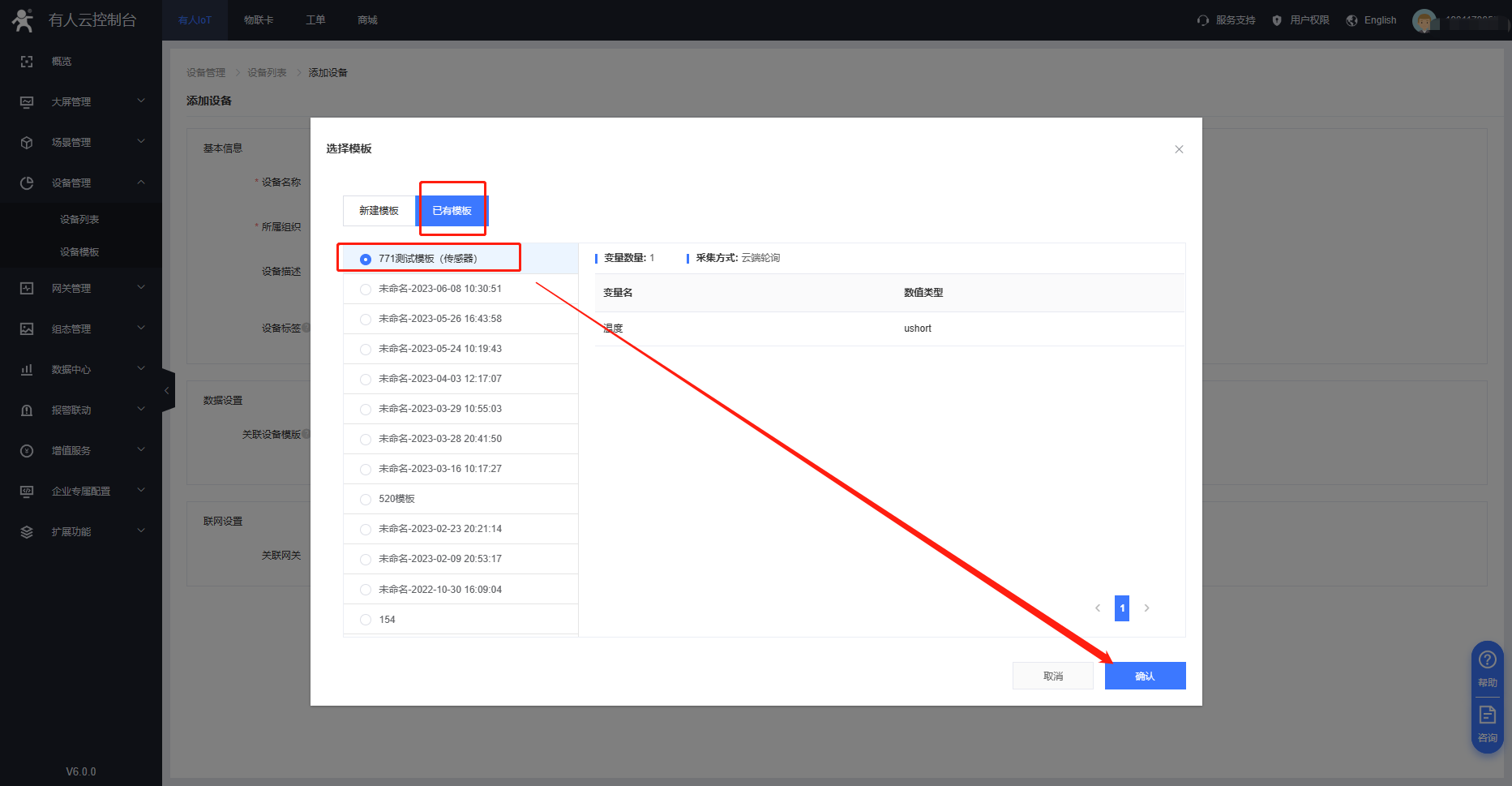

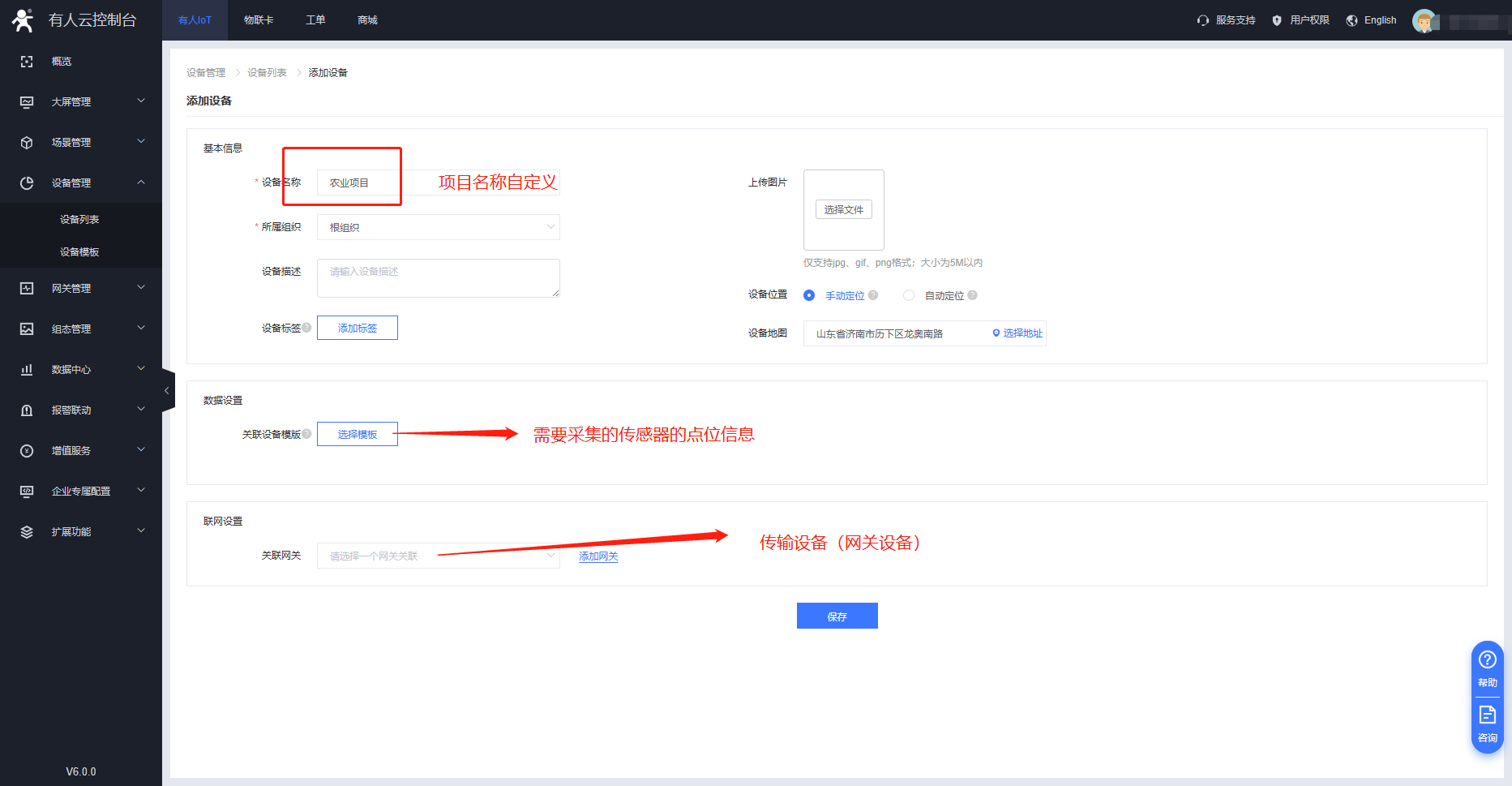

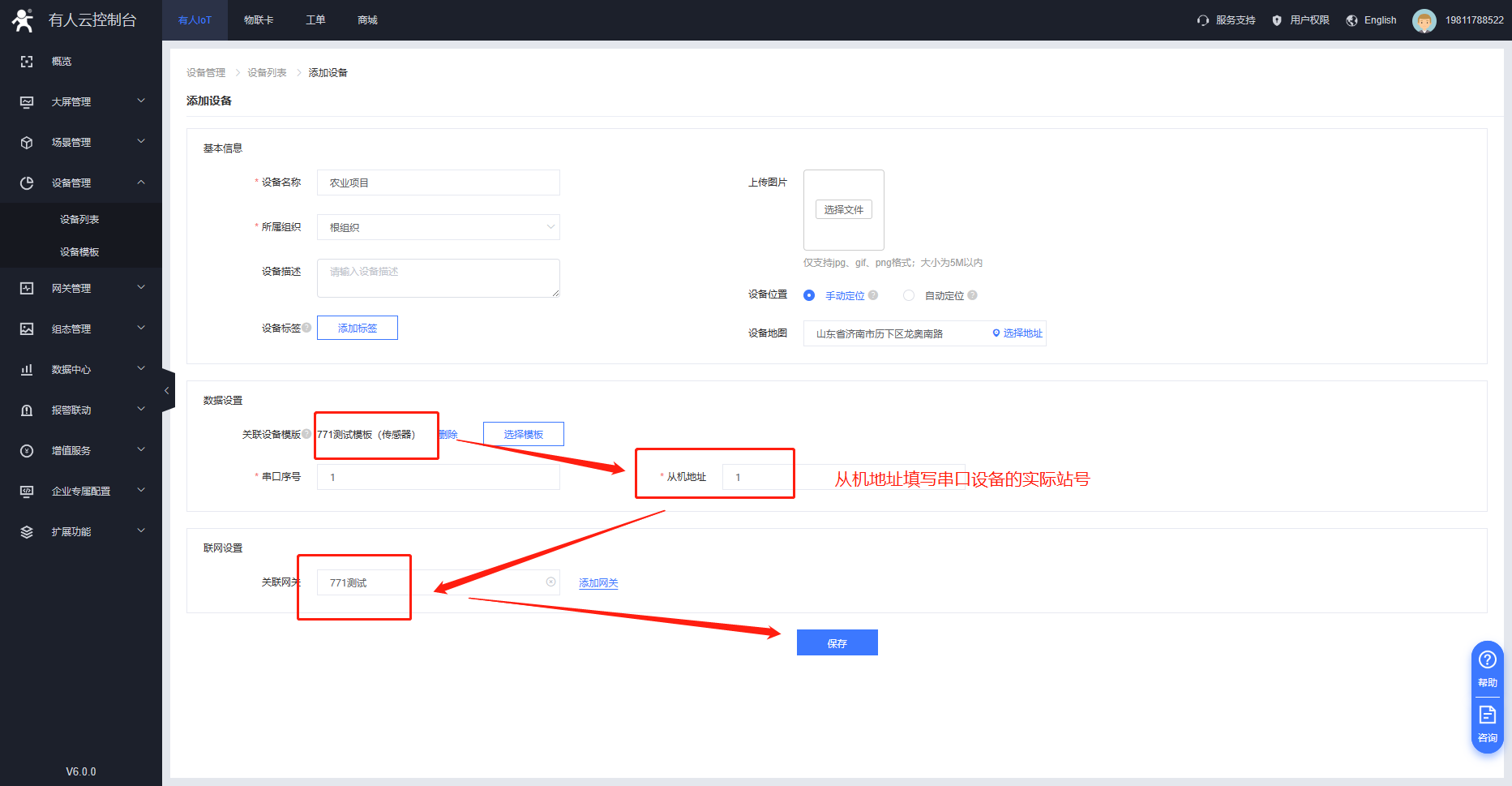

4、在设备管理--设备列表的界面将扫码配置的网关以及设备模板进行关联，并配置串口终端设备的从机地址。

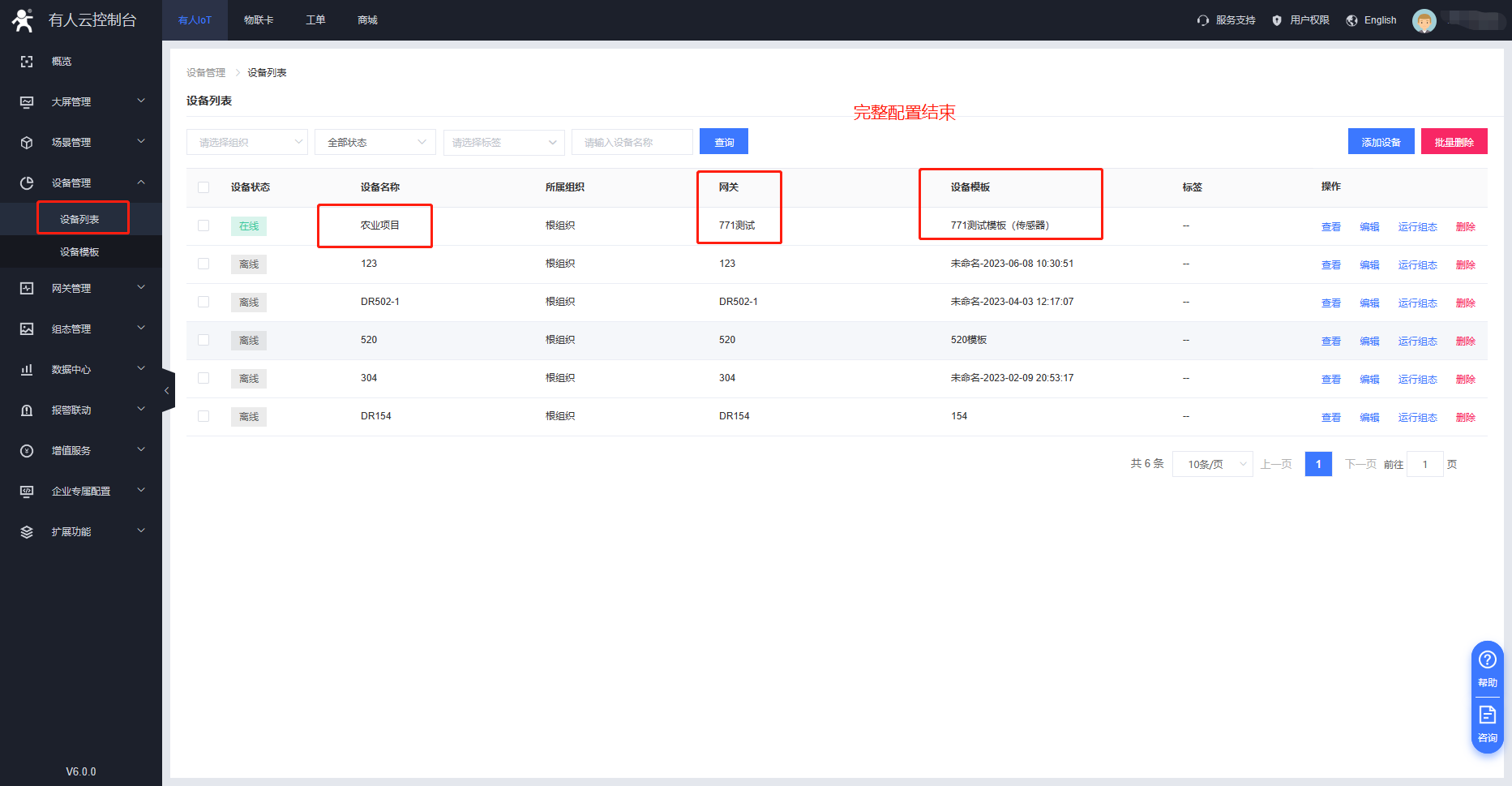

5、在设备列表信息展示界面，显示关联的网关与设备模板表示云端配置已完成
六、数据测试

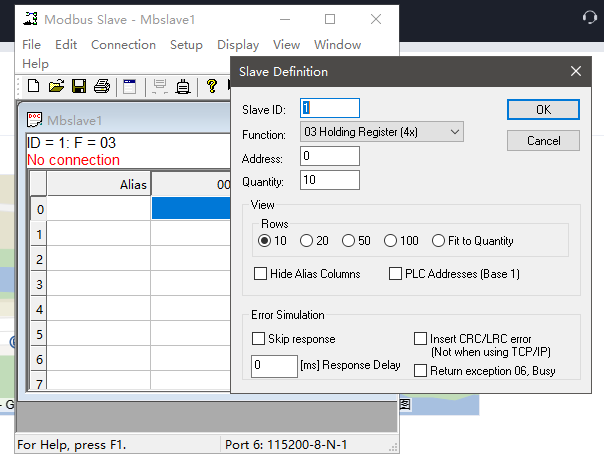

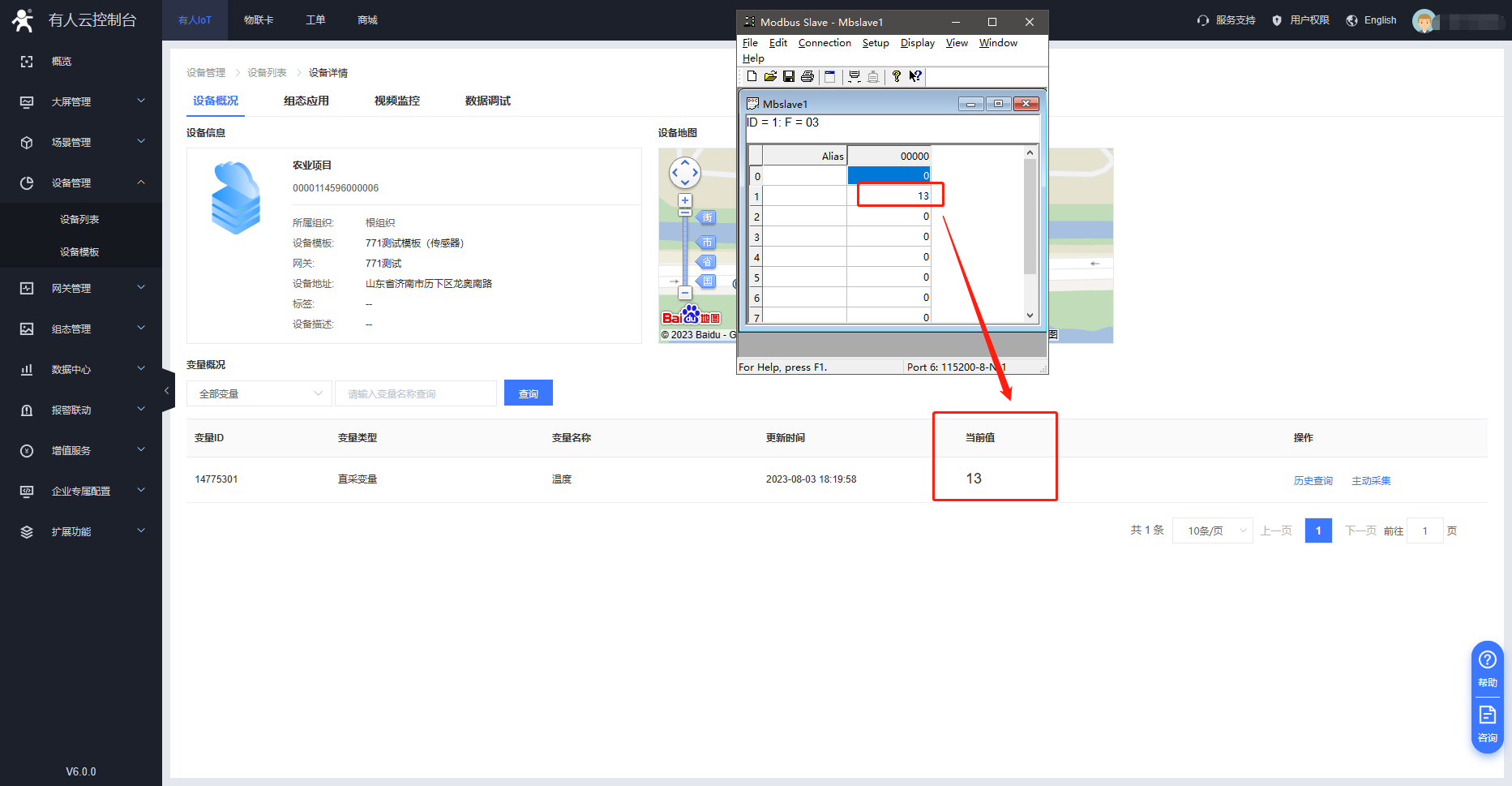

打开modbus slave软件（模拟串口传感器设备）配置串口设备的寄存器信息，调用电脑设备管理器中生成的端口。寄存器数值写为13，云端将进行采集。
